Brand Name: hanztech
Model Number: W1, W2
Place of Origin: Shaanxi, China (Mainland)
Product Description
tungsten wire price
When you need other dimension, just send us the inquiry.

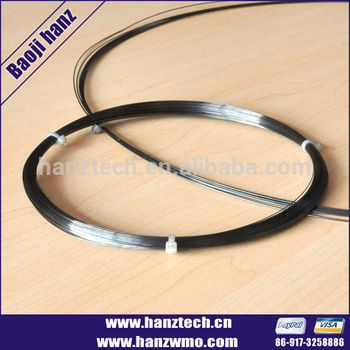

tungsten filament/tungsten heat wire
Specification
Diameter, mm | Diameter telorance, % | Weight ( 200mm ), mg | Length min, m |
0.012−0.06 | − | >0.44−10.91 | 700 |
0.06−0.1 | − | >10.91−30.30 | 400 |
0.1−0.15 | − | >30.30−68.18 | 250 |
0.15−0.2 | − | >68.18−121.20 | 150 |
0.2−0.35 | − | >121.20−371.19 | 100 |
0.35−0.7 | ±1.5−±2.5 | − | same as 150g |
0.7−1.8 | ±1.0−±2.0 | − | same as 200g |
tungsten filament/tungsten heat wire
Chemical Composition of tungsten filament/tungsten heat wire
Grade | W content, min, % | Total impurity elements, max, % | Each element, max, % |
W1 | 99.95 | 0.05 | 0.01 |
W2 | 99.92 | 0.08 | 0.01 |
Machining of tungsten filament/tungsten heat wire
Feature & Application
Feature of tungsten filament/tungsten heat wire
• High temperature performance
• Good machining performance
• High recrystallization temperature
• Good resistance to high tmperature sag performance
• Good acid and alkali resistance to room temperature
tungsten filament/tungsten heat wire
Application
• Tungsten heater element
• Other heater components in semiconductor
• High temperature lamp and filament, stock - resistance filament, double helix filament etc
• Electric incandescent lamp filament, fluorescent light filament, etc
Packaging & Shipping
Packaging
• tungsten wire in spool: plastic case or plastic vacuum packing.
• tungsten wire in coil: woven bag or plastic vacuum packing.
Note: The length or weight of single tungsten wire can be supplied by your special request.
tungsten filament/tungsten heat wire
Shipping
TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport are available.
Depends on your demands, we will try our best to choose the most suitable way for your tungsten wire.
Advantages & Disadvantages:
• Express delivery: 4-6days, wide covarage area ( volume & weight restricted )
• Sea transport: cheap, volume umlimited ( long sailing time, influcenced by climate )
• Air transport: 4-6days, simple packing ( expensive, volume restricted )
• Railway transport: volume umlimited ( expensive, tracking difficult )
Payment Terms
1. Sample order: western-union, Paypal, Escrow and T/T100% are accepted.
2. Big order: T/T100%, full payment advanced, L/C are accepted.
We accepted all payment terms ( like western union, money gram, paypal, escrow etc. ).
Please choose which terms is convenient for you. Depends on your order, we also will recommend the most suitable way.
Company Information
We are manufacturer with 8 years' experience, supplying products to different customers. And we also want to offer you what you need, so please let me have the opportunity if you need the plate, bar, rod, foil, wire and tube of tungsten and tungsten alloy.
FAQ
Alibaba Trade Assurance
How to make an order?
------------------------------------------------------------------------------------------------------------------------------------------
Any question, please do not hesitate to contact us!
China Tel: +86 (0)917 3258886
China Fax: +86 (0)917 3258889
Email: guanjunli(@)hanztech.cn
------------------------------------------------------------------------------------------------------------------------------------------
If you can not find the product you need, See here!
please write the following information, We will send you the product details and quotation.
1. Material: tungsten, molybdenum,etc.
2. Form: plate, sheet, bar, rod, tube,wire,etc.
3.D imension: thickness, width, length or diameter.
4. If you can supply the quantity and using, it's better for supplying quotation.
Thanks.
