Synthetic/Non-woven G4 efficiency Plate Air Filter

FOB Price:

US 5-30 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200,000 Set/Sets per Year

Port:

Dalian/Dandong

Place of Origin:

Liaoning, China (Mainland)

Payment Terms:

T/T

Brand:

TianHao

Products Model:

DEGL

Products Details
Company Profile

Quick Details

Brand Name: TianHao

Model Number: DEGL

Place of Origin: Liaoning, China (Mainland)

Packaging & Delivery

Packaging Details: Plastic bags with paper boxes.
Delivery Detail: 20-40days

Specifications

Frame:Paper Plate, Aluminium Alloy,PPS,Steel Spacy
Washable, Low Resistance, Big Dust Capacity and Easy Replacement.

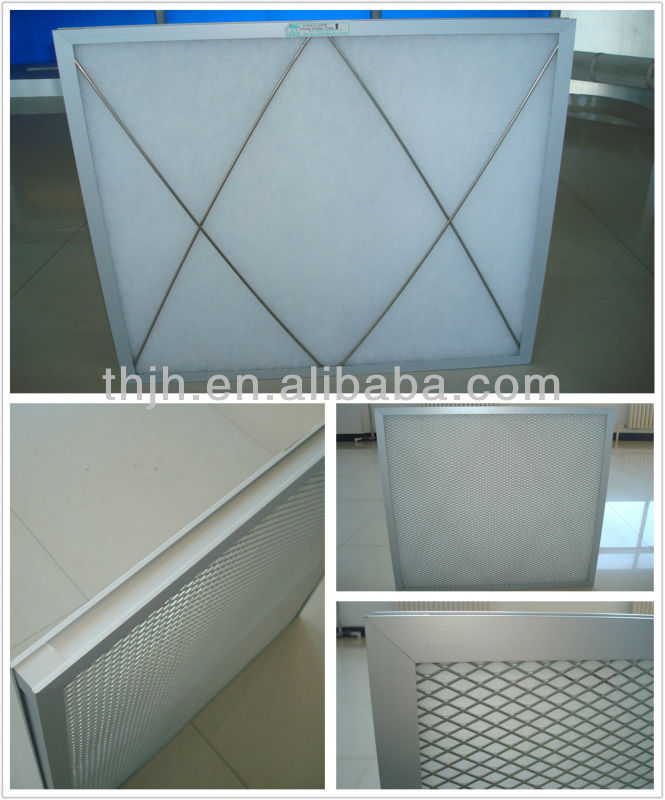

Detail Pictures

Introduction

DEGL plate air filter is suitable for the prefilter for all kinds of clean ventilation system, protection filter of heat exchanging parts for central air-conditioning of general ventilation requirements and return filter of all industrial clean workshops or civil buildings. To satisfy air filter assignment problems in air conditionings of all customers, DEGL plate filter has the following types and features:

Efficiency specifications: G3-F6
Frame: Paper plate, aluminum alloy, PPS or steel spray.
Features: Washable, Low resistance, big dust capacity and easy replacement.

Specification Table

Class	Dimensions	Rated Air Flow	Arrestance Efficiency	Count Efficiency	Initial Resistance	Final Resistance	Remark
G3	592×592×25	3400	85	51/5.0μm	<60	100-150	Flatbed
G3	592×592×50	3400	85	51/5.0μm	<55	100-150	Flatbed
G4	592×592×46	3400	95	82/5.0μm	<60	100-150	Foldable
G4	287×592×46	1700	95	82/5.0μm	<60	100-150	Foldable
G4	490×592×46	2800	95	82/5.0μm	<60	100-150	Foldable
G4	592×592×96	3400	95	82/5.0μm	<60	100-150	Foldable
G4	287×592×96	1700	95	82/5.0μm	<60	100-150	Foldable
F5	592×592×96	3400		41/1.0μm	<65	150-250	Foldable
F5	287×592×96	1700		41/1.0μm	<65	150-250	Foldable
F6	592×592×96	3400		62/1.0μm	<70	150-250	Foldable
F6	287×592×96	1700		62/1.0μm	<70	150-250	Foldable

Certification

Production

Package and Delivery

Application

Partners

Japanese Customer Visiting Our Company

Exihibit Room

Quality Service

Quality Control

Corporate Culture-Military Training

More Surprises

Dandong TianHao Clarification Material Co., Ltd. is located on the side of the beautiful Yalu River of China. We are a professional enterprise mainly produces various efficiency levels of non-woven filter material and high efficiency filters. At present, our company can produce filtration products and relative equipments with dozens of models and hundreds of specification. Many products filled the domestic blanks, among which, the DE series filter material with fiber layer of graded density and large dust holding has won Identification of the national scientific research and Science and Technology Progress Award with its unique stepped filtration method.
Guided on science and technology, based on high quality and serve for society is the purpose of survival and development of TianHao Company. TianHao company has established long-term technical cooperation with Tsinghua university, Beijing Institute of Nuclear Engineering and Northeastern University. The Peoples Republic of China Machinery Industry Standard Non-woven adhesive fiber layer filter for gas purification which has been promulgated on 2006 was jointly drafted by our company and Northeastern University.
TianHao company has passed ISO 9001:2008 and established perfect quality control system based on this international standard. Now our company has large filter media production lines bag filter production line and HEPA production line. At present, the variety and technical content of the filter material and filters we produced are all in a leading position. The technical performance of some products has exceeded similar imported products. Meanwhile, TianHao Company can make edible mushrooms project, clean projects of electronics and pharmacy and air compressor air inflow filter project of petrochemical industry.
TianHao Company has advanced filtration testing equipment. According to customers requirements and applications, we can use varieties of particles and methods to test, such as weight method, particle sizing and counting method, sodium flame method, MPPS method and DOP/DOS method.
TianHao Company would like to provide you high quality service with sincerity and super technology.
