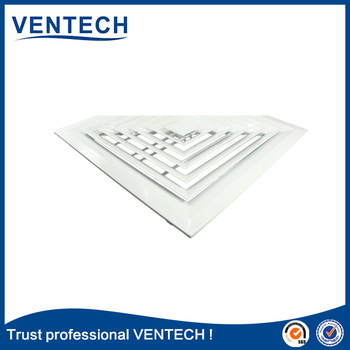

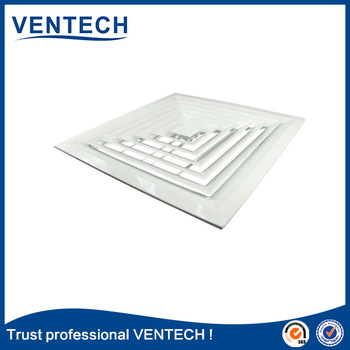

Hvac air ventilation aluminum square green air diffuser with damper (V92)

Ventech Ventilation diffuser is a device that is designed to provide air flow in a room thoroughly.

It works to increase the efficiency of air conditioning units by distributing cooling air. When an even airflow is maintained, drafts and hotspots in a room are eliminated. Providing greater comfort.

 Features:

• Frame is made og high quality esxtruded aluminum profile.
• Blades are made of aluminumsheet by one piece stamping.
• Core is removable to allow for better installation and maitenance.
• Opposed blade damper optional.
• Color RAL9010,RAL9016,or Anodized.
• Other size is a vailble

What is an aluminum 4-way square diffuser?

l  Material: High quality extruded aluminum profile(A6063)

l  Frame & Cores: Thickness 0.8mm,0.9mm,1.0mm,1.2mm

The frame is made of high quality extruded aluminum profile with advantages of corrosion resistance and rigidity.

The cores are fixed to the frame with aluminum pipes and pins with steel springs.

Core can be easily removable and interchangeable for better installation and maintenance. Great convenience for you!

• Color: Surface is well power coated finish with RAL 9010/9016/ other colors on requested. Natural anodized aluminum finish is also offered on requested.

• Accessories: OBD-opposed blades damper, Neck adaptor.

• Model type:   SCD-VA extruded punching cores & welding frame ( Buy it!)

                            SCD-VA2 welding cores& welding frame

       SCD-VB wholly extruded punching cores & frame( new arrival type)

    SCD-VC square diffuser ceiling replacement (hot-selling type)

l  Sizes: Customized-made in size , standard sizes as below:

Face size: 595x595,597x597,600x600mm

Neck size:150x150 225x225 300x300 375x375 450x450 455x455

Height: 50mm

Face size= neck size+145mm

  to make a 4-way square ceiling diffuser?

In order to make a high quality square diffuser, Ventech people introduce a whole production line with advanced stamping, punching machines which are operated by experienced workers.

Firstly, our workers stamp the aluminum profiles, then forward the stamped aluminum profile to punching line. All cores and frames are made by high-efficient machines, then comes to the installation line, we ventech also enjoy the wholly automotive squeezing machines.

Before polishing and filling the putty in the gaps, the air diffuser should be washed for 10mins then baked for 30mins.  Power coated is arranged behind the polishing step, by using totally-closed powder finishing line and parching space, the perfect diffuser rolls off the products line and ready to be packed, QC is the priority during each step of the mass productions. We have professional QC to check quality before products go to next step.

 Details description:

l  Square diffuser with damper

l  We Ventech offer high quality, focusing on details carefully especially in power coated and welding corners details.

l  Automotive powder coated ensures no gaps at the welding corners and provides a good-looking square diffuser for clients.

l  Is Ventech a factory?

Yes sir, Ventech China is a leading manufacturer in this line for over 15 years, enjoying 100workers, about 7354 square meters plant, we are doing a good job to offer great products abroad.

You ‘re the most welcomed to come and visit our factory in Foshan city which is far away from Baiyun airport.

l  What is price terms?

EX-Work, FOB SHUND, CIF&CNF

l  What is payment terms?

T/T, L/C, CAD can be acceptable.
