Brand Name: VENTECH
Model Number: SCD-VA
Place of Origin: Guangdong, China (Mainland)

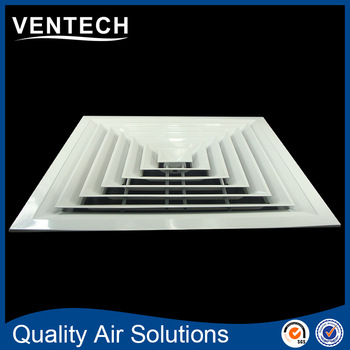

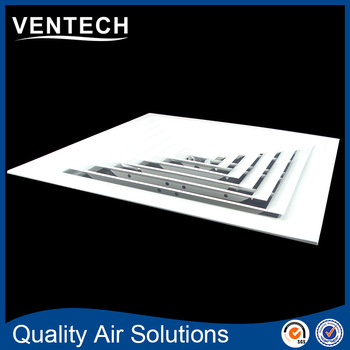

Supply air diffuser
* Square ceiling diffuser is an integrated design ,where the diffuser frame is punched and stamped in one piece with the diffuser core. The diffuser is designed to deliver air equally in all 4 directions .
* 4 way diffuser is usually with damper for supply air .Damper is optional ,it fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
* SCD-VA,SCD-VB SCD-VC are the three kinds of square air diffusers which the airflow flatly, they are straight-edge diffuser, chamfer-frame diffuser, and new type of emovable diffuser.
* They are mainly used for studios, hospitals, theaters, classrooms, concert halls, libraries, recreation hall, theater lounge, general offices, shops, hotels, restaurants and gymnasium, and so on.
* In order to avoid the noise interference in a variety of environment, except determine the wind speed by the neck according to performance table, it should consider the installing height and surroundings.
| Material :Aluminium |
| Function: Supply and Return Air |
| Shape:Square Type |
| Size: 150x150, 225x225,300x300,375x375, 450x450, 525x525. Other sizes available |
| Colour : RAL9010,RAL9016,RAL9003,Anodized |
| Installation: Ceiling |
| Features: Decorate, Adjustable ,Durable |
| Accessories; OBD,Clip,Fasten Rope |
| Package : Inner PVC wrap with protection, outer with strong carton box |
| Delivery time :30 days |
FEATURES:
* Square diffuser by welding, frames are make of high quality profile, 1.0mm thickness.
* Blades are make of aluminium sheet by one piece stamping or by welding
* Core is removable to allow for better installation and maintenance
* Opppsed Blade damper optional
COLOUR :
* White: RAL 9010, RAL9016,RAL9003
* Anodized
* Black
* Other size is available
STRUCTURE:
* 1 way ,2 way 3 way and 4 way air flow
SPECIFICATION:
| Standard Size HxL (mm) | Air Volume(m3/h) | Throw Max.(m) |
| 150x150 | 120 | 0.90 |
| 225x225 | 240 | 1.40 |
| 300x300 | 400 | 1.70 |
| 375x375 | 600 | 2.00 |
| 450x450 | 840 | 2.40 |
| 525x525 | 1120 | 2.55 |
| 600x600 | 1460 | 2.70 |
| Datas are chosen when the air velocity is 2.4m/s and the velocity at throw distance is 0.5m/s | ||
PERFORMANCE DATA :
OUR SERVICES AND MISSION:
* VENTECH is the leader of air diffusion technology .We concerntration on high quality and competitive price.We have strict qualtiy control process,and every product is hand inspected to ensure it will be in good quality condition .
* VENTECH will work to develop new design and technologies to achieve better product performance,easier to install and higher quanlty year on year .
* VENTECH personnel will always cooperate with the customer to make doing business together and efficient ,fast and pleasant experience .
* VENTECH is you best choice ,we are ready to cooperate with you to provide a comfortable way of handling air.
