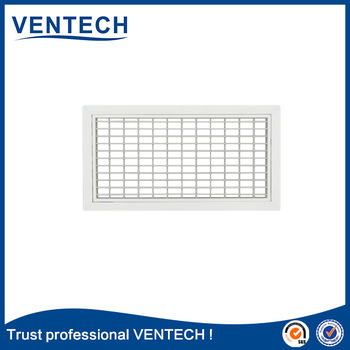

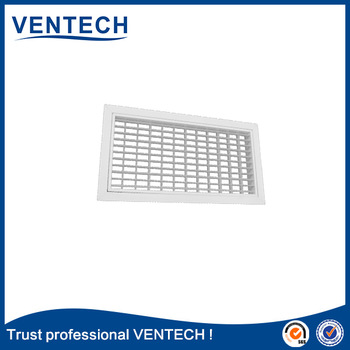

Double Deflection Grille Square Deflection Grille Aluminium grille

Double Deflection Grille Square Deflection Grille Aluminium grille

FOB Price:

Get Latest Price

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

100000 Piece/Pieces per Month

Port:

SHUNDE

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

VENTECH

Products Model:

DDG-VA

Products Details
Company Profile

Quick Details

Brand Name: VENTECH

Model Number: DDG-VA

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Carton packing; Pallet optional
Delivery Detail: 30 DAYS

Specifications

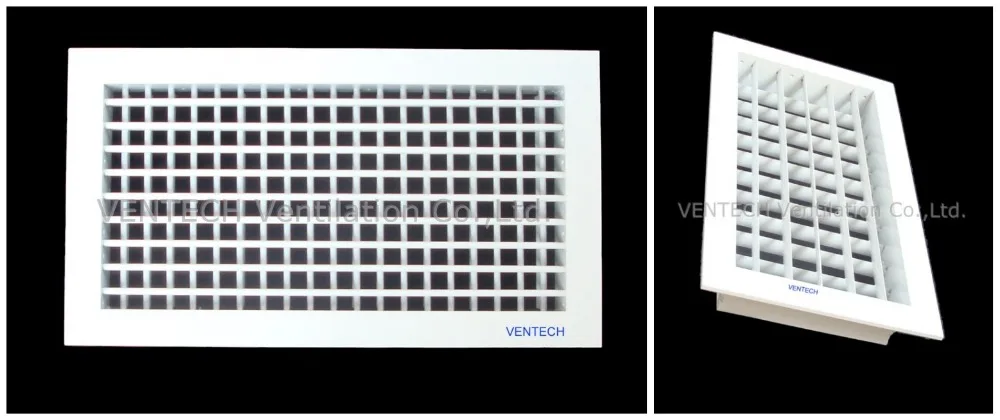

Double Defletion Grille(DDG-VA)

Features:

Frame is made of high quality extruded aluminium profile;
Blades are movable on horizontal or vertical lines;
Mounting by screws or spring clips;
Opposed Blade Damper optional;
Color : RAL 9016, RAL 9010 .

Selection Table:

Standard size HxL (mm)	Effective Area(m²)	Air Volume(m³/h)
200x100	0.013	150
200x150	0.020	200
250x100	0.017	160
250x150	0.025	250
300x150	0.030	300
300x200	0.040	450
500x250	0.090	810
600x300	0.149	1400
750x300	0.165	1800
1000x500	0.373	3500

Assumed air velocity is 2.5m/s
