only actuator 24v CR04 CR01 micro 6v mini electric actuator

only actuator 24v CR04 CR01 micro 6v mini electric actuator

FOB Price:

US 11-120 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

20000 Piece/Pieces per Month

Port:

Tianjin China

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

CWX

Products Model:

CWX15N/Q

Products Details
Company Profile

Quick Details

Brand Name: CWX

Model Number: CWX15N/Q

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Detail: Inner packaging: paper box:1~2PC/Paper Box Outer packaging: cartonbox , 30-80PCS/CTN
Delivery Detail: Delivery Detail: 3-5 work days for PO<2000USD via Express

Specifications

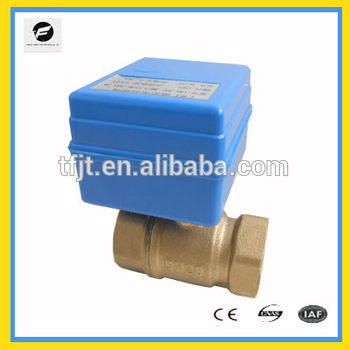

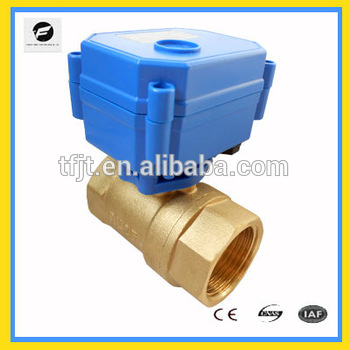

Electric ball valve features: excellent capacity of water stoppage, large water flow rate, zero dirt block, low torque, nice design and easy installation. CR04 brass motorized self-closing ball valves

24v CR04 brass electric valve smart water valve

Description:

Valve Size:	BSP1/2"
Valve Material	SS304
Circulation Medium:	Water,Air
Max Working Pressure:	1.0Mpa
Liquid Temperature	0-90 degrees C
Work Volt:	DC24V
Max Torque:	1.5Nm
Rated Current:	45-100mA
Open/Close Time:	3-5seconds
Working Life:	100,000 Circles
Protection Class:	IP65
Valve Body Material:	SS304
Actuator Material:	Heat-resistant ABS
Sealing Material:	PTFE,silicon rubber ball seat,EPDM and NBR stem seat,NBR o-rings
Manual Override:	No
Actuator Rotation:	90 degrees C
Cable Length:	0.5m
Wiring Control Method:	CR01 CR02 CR03 CR04 CR05

Material:

Valve Body: Hpb58-3 and S304 ;
Valve Seal: Stem: EPDM with double O-ring ;
Ball: PTFE+EPDM with double O-ring;
Actuator enclosure: PC+10GF;
Actuator revolving shaft: POM;
CR01 6v brass motorized ball Valve for feed water control
only actuator 24v CR04 CR01 micro 6v mini electric actuator

Specifications:

Actuator motor: Reversible synchronous motor
Power supply: AC220V, AC110V, AC24V
Output torque: 1.5~6N.m
Power consumption: <5W
Control way: on/off
Pipe connection: G/BSP/NPT
Media temperature range: 2°C~90°C
Ambient temperature: -5°C~60°C
Running time: 3-5S/50Hz, 3-5S/60Hz
Ambient humidity: <90%
Pressure grade: PN16
Protect rank: IP65
