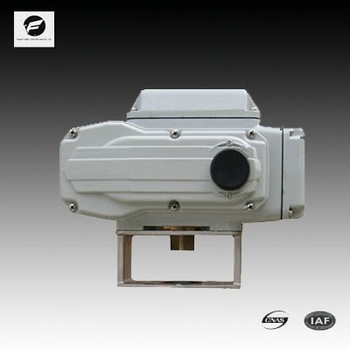

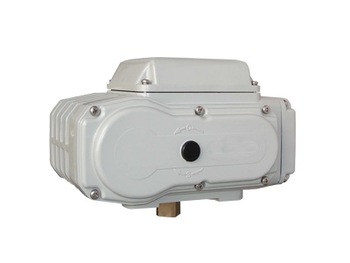

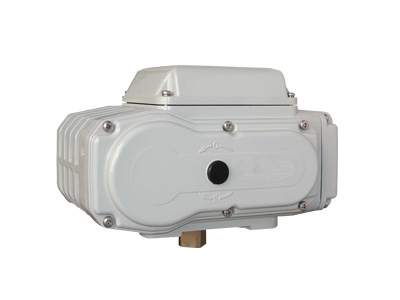

4 20ma on off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

4 20ma on off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

FOB Price:

US 20-500 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

30000 Piece/Pieces per Month

Port:

Tianjin

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

Products Model:

CTB

Products Details
Company Profile

Quick Details

Brand Name: TF

Model Number: CTB

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: carton,wooden box
Delivery Detail: 3-5 work days,8-14 work days,20-30 work days

Specifications

Product Name :4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Product Class:CTB Series Valve actuator

Product No. :4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Product Content : 220v 24V dn150 Cast Iron electric butterfly valve

Product Name :CTB-010 Cast Iron butterfly valve

Product Class:CTB-010

It is widely applied to the fields of petroleum, chemical plant, paper making, spinningmill and sewage farm.4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Main technical parameters

Power: 24vdc, 230vac
1) Nominal size: DN 15-300mm
2) Nominal pressure: ANSI 150-600lbs
3) Flange standards: ANSI
4) Leakage class: ANSI VI
5) Body's material: WCB/SS

Characteristics:
1) Quick open
2) Temperature range: -40~+180°C

Selection Table parameters:

	CTB-005	CTB-010	CTB-016	CTB-025	CTB-050	CTB-100	CTB-200
Power Supply	AC220V,AC380V,DC24
Torque	50NM	100NM	200NM	40NM	500NM	1000NM	2000NM
Open/close time	10-30s	15-30s	10-30s	10-30s	10-30s	10-30s	10-30s
Open/close time	10-30s	15-30s	15-30s	15-30s	15-30s	15-30s	15-30s
Power	10W	23W	40W	80W	90W	100W	100W
Current	210mA	250mA	400mA	750mA	800mA	900mA	900mA
Motor	10W/F	23W/F	40W/F	80W/F	90W/F	100W/F	100W/F
Protection	Thermal protection
Input signal	4-20mA.DC
Input signal	1.5V.DC
Output signal	4-20mA.DC
Rotation angle	90,70°
Ambient temperature	-25-60°C
Pressure value	1500VAC/s
Weight	2.3KG	4.0KG	7.3KG	8KG	8.4KG	12KG	12KG
Installation angle	Any angle
Waterproof	IP65
Box material	ALUMINIUM
Manual operation	Attached to the handle
Limit	Electrical machinery

Contact :

Contact: Miss Cherry Yue

Email: tf.coc(at)tfjt.com

Phone:+8615922024814 (wechat / whatsapp)

Skype:cherryyue0328(at)yahoo.com

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
