2 way DC9-24V 10NM DN40 SS304 motorized ball valve for automatic flow control equipment

FOB Price:

US 35.00 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

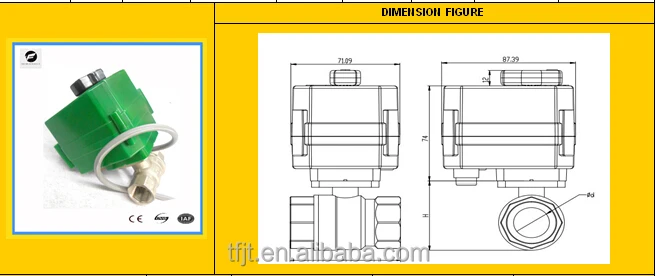

2 way DC9-24V 10NM DN40 SS304 motorized ball valve for automatic flow control equipment

Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
IP67 and F type are available
Manual override function is safe and easy

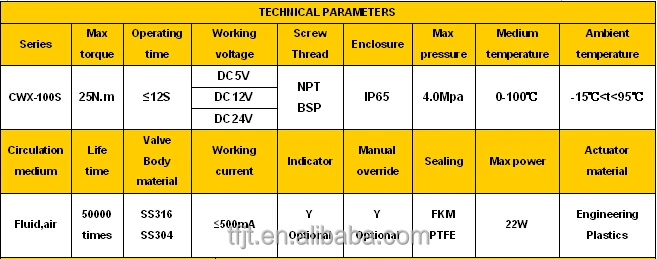

Technical parameters:
Size: 1 to 1-1/4 inches, full port metal ball valve
1/2 to 1 inches plastic ball valve
Material: brass, stainless steel, UPVC, CPVC
Working pressure: 1.0 mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 15W
Manual override: available
Welcome to visit our website for more details.
mini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, hydraulic valve,actuator valve, electric operated valve.

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
