CWX-15n DN15 mini 2-way motorized ball valve DC5V,DC12V,DC24V automatic control,HVAC, water treatment,IC card

FOB Price:

US 15.00 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

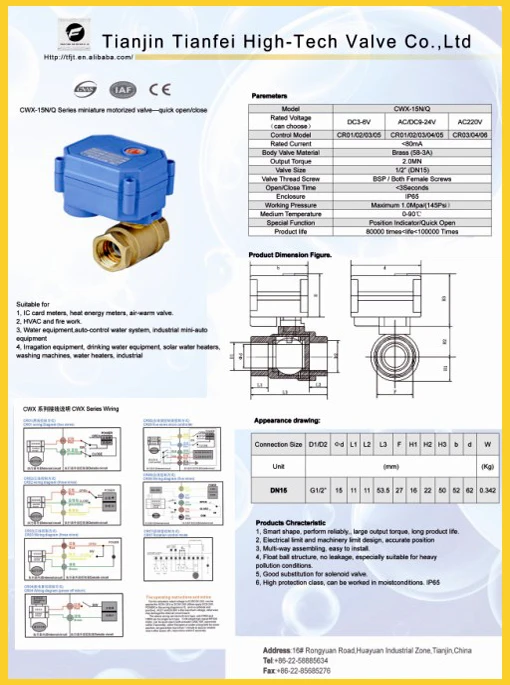

CWX-15n DN15 mini 2-way motorized ball valve DC5V,DC12V,DC24V automatic control,HVAC, water treatment,IC card

Features:

Mini dimension suits for samll equipment
Metal gear
Extra long life: 100000 times Min.
Low working current,less 80mA
Protection : IP65
Manual override function is safe and easy

Suitable to :
Water treatment
Quick open/close condition
Water drinking equiments
The Circumstantce Pnematic valve can not worked
HVAC

Technical paremeters:
Size: 3/4'' to 11/4"inches
Material: stainless stell(304),brass
Max working pressure:1.0MPa
Actuator rotation:90 degree
Body: Brass SS
Voltage: DC3V-9V 9V-24V AC9V-24V
Torque output: 1.5Nm
Working Presure: 0-10 Bar
Temperature: 0 - 100 degree celsius
Size Scope: 8mm~20mm
Open/Close time: 3 seconds
Number of Wires: 2-5 wires
Protection Class : IP65

mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve.

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.
