CWX15n AC220V DN15 threaded actuator brass mini motorized ball valve electric

CWX15n AC220V DN15 threaded actuator brass mini motorized ball valve

Electric ball valve with timer control, auto open and auto closed

Working current: ≤500MA
Open/close time: ≤5 Sec
Life time: 70000 times
Valve Body material: Brass, Nickel plated Brass, 304 Stainless steel (Optional)
Actuator material: Engineering Plastics
Sealing material: EPDM & PTFE
Actuator rotation: 90°
Max. torque force: 50N.M
Cable Length: 0.5m,1.5m (Optional)
Environment temperature: -15°C~50°C
Liquid temperature: 2°C~90°C
Manual override: No
Indicator: Yes
Protection class: IP65

Specifications

2 Way Electric solenoid control Valve; water solenoid valve; electric valve, mtorized valve, ball valve, water valve, brass valve for chilled water, dringking water, hvac system, solar system; 230VAC NPT, BSP thread Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC 2 way automatic valve electric actuator 3VDC for chilled water
Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 700,000 to 100,000 circles
Low working current, only 60 to 80mA
IP67 and F type are available
Manual override function is safe and easy
Applications:
HVAC
Water treatment
Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid cannot work reliably
Technical parameters:
Size: 1/2 to 1 inches
Material: stainless steel (304, 316), brass, PPO
Voltage: 5, 12, 24, 110 to 220V AC/DC
Working pressure: 1.0 or 1.6mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 5W
Manual override: available
Material of main parts:
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel


mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve.

Quick Details

3 port auto shut off eletric ball valve
electric ball valve
shut off valve,motorized ball valve
Open/close:3 seconds.
Fail safe(auto-return) function,
The best alternative to the solenoid valves.
Manual override option
2-way automatic valves 1/2'' to 3/4'',IP65,with diffrent wiring,3-6V dc,12V dc,24V dc,9-24V dc/ac,1.0Mpa.
Features:
Mini dimension suits for samll equipment

Metal gear

Voltage :  DC3-6V,9-24V,AC9-24V

Extra long life: 100000 times Min.

Low working current,less 80mA

Protection : IP65
Suitable to :
Water treatment
Quick open/close condition
Water drinking equiments
The Circumstantce Pnematic valve can not worked
HVAC
Technical paremeters:
Size: 1/2'' to 3/4 inches
Material: stainless stell(304),brass
Vltage:DC3-6V,9-24V
Open/close time:3sec
Max working pressure:1.0MPa
Actuator rotation:90 degree
Body: SS,Brass
mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve.
MOQ: 10 Piece/Pieces
Port: New Port,Tianjin
Payment Term L/C   T/T   Western Union
Supply Ability: 20000  Piece/Pieces / Month
Package: Paper Carton
Delivery Time 3-5 days (sample or order<1000USD)

mini electric ball valve for water treatment,HAVC,automatic control
for watermeter motorised ball valve 2/3 way for watertreatment
or IC card meters,for air-warm valve HVAC
motorised ball valve CWX-15Q
1 size:1/4"-1" brass valve.
2 volt:3-6V,12V,24V,220V
3 presssure:1.0mpa
2-way/3-way electric operated Valve 1/4" to 1",IP65, with differnt wiring,3-6Vdc,ac/dc9-24V,220V, 1.0Mpa    CE,ISO approved.

Technical parameters:
Size: 1/4 to 1 inches
Voltage: 3-6vDC,AC/DC9-24v,220V
Material: stainless steel (304, 316), brass
Open/close time:3sec
Working pressure: 1.0 mPa
Torque output: Q-1.5NM, N-2NM
Control mode:2,3,5 wires
End:BSP&NPT
Medium temperature: 0-90°C
Actuator rotation: 90 degree
Rotation direction: double acting
Low working current: <80mA
Working medium:water,air,gas.
Product life: 100,000 times
Special function:position indicator;quick open
Enclosure:IP65
Main export areas:Europe,Asia,North America, South America,Mid East,Oceania,Africa

Features:
1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
2. Electrical limit and machinery limit design,accurate position,avoid gear with switch.
3. Multi-angle assembling,easy to install.
4. Float ball structure,no leakage,especially suitable for heavy pollution conditions.
5.Good substitution for solenoid or pneumatic valve.
6. High protection class,can be worked in moist conditions. IP65.

Situable for :
1.IC card meters,heat energy meters,air-warm valve.
2.HVAC and fire works.
3.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.
6.Multiple voltage and control mode, applicable to a variety of occasions.

Other illustration:
Material of main parts:
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
mini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, actuator valve, electric operated valve

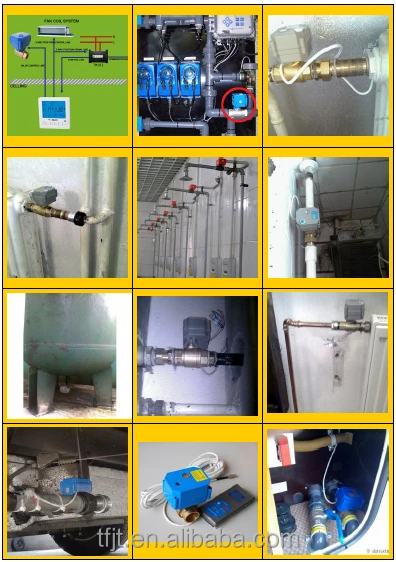

Applications:

1.Air-warm valve.HVAC and fire-flight sprinkler service,Fan coil and,hot water cycle system
2.Environmental Protection and drain water system,Water treatment project .
3.IC card water meters,heat energy meters and reuse of rainwater and reuse of grey water system
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Small equipment for automatic control,agricultural water conservation and water-saving irrigation system
6.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
7.Irrigation system,cooling/heating system,Low voltage plumbing system
8.Water equipment,auto-control water system,industrial mini-auto equipment, Small equipment for automatic control
9.Auto drain& Water cooling system,Electric brewing system,Heating &cooling HAVC system,Water cooling bleed system
10.Rain water harvesting,Solar heating,underfloor heating,Irrigation system
11.Leak detection&water shut off system,Water saving system,some other automatic control system.

Material of main parts:

1.Actuator: heat-resistant ABS
2.Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
3.Body: brass or stainless steel
4.Ball: brass or stainless steel
5.Stem: brass or stainless steel
