Home > Products > Refrigeration Fittings > Condenser

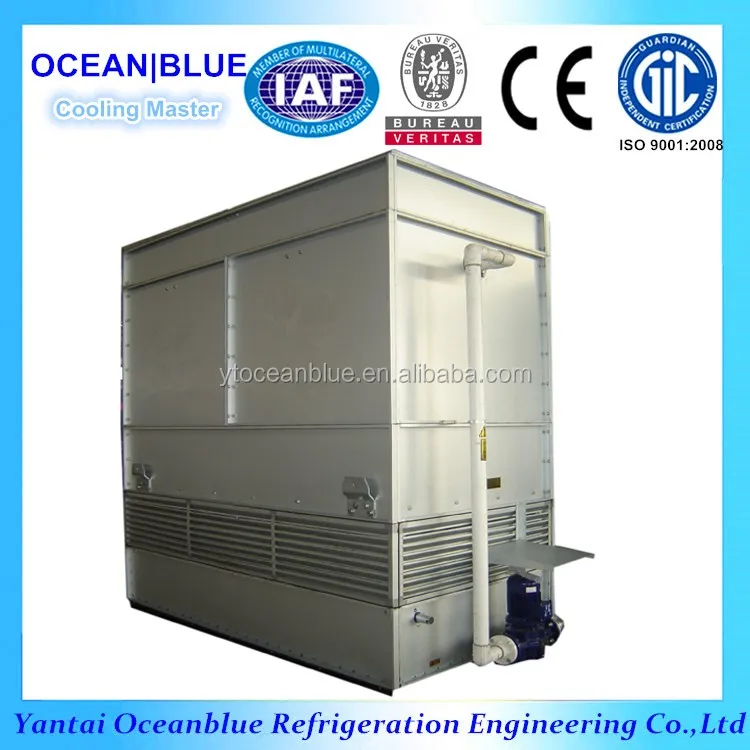

High Quality Evaporative Condenser

FOB Price:

US 6800-15800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Month

Port:

Qingdao Port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Oceanblue

Products Model:

ECB

Products Details
Company Profile

Quick Details

Brand Name: Oceanblue

Model Number: ECB

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: The evaporative condenser with professional design can be loaded on the container directly.
Delivery Detail: Shipped in 20 days after payment

Specifications

Product Description

Product Application (High Quality Evaporative Condenser)

The evaporative condenser is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

Model	Heat Rejection(KW)	Size(LWH) mm	Weight(kg)	Fans (Air Flow m ³/hr)	Water Pump (Water Flow L/S)
ECB300	305	246020003715	2360	60000	12.5
ECB550	555	300021103940	3160	60000	12.5
ECB600	605	300022003940	3310	60000	12.5
ECB700	705	392020704240	4220	90000	13.9
ECB850	855	424022004240	4820	120000	13.9
ECB900	905	500020704296	5080	120000	24.7
ECB1100	1109	560022004315	5750	120000	24.7
ECB1250	1258	560022004466	6400	180000	27.8
ECB1400	1405	560022004466	6740	180000	27.8
ECB1520	1528	500030004500	7010	180000	27.8
ECB1680	1682	560031004280	7760	225000	39.7
ECB1800	1803	560031004520	8080	225000	39.7
ECB2000	2005	560035004520	9080	255000	39.7
ECB2200	2208	560035004520	9540	255000	39.7

Main Features (High Quality Evaporative Condenser)

(1) Power-saving; Water-saving; Space-saving
(2) High Heat Exchange Ability
(3) Easy to install
(4) Low maintenance cost
(5) Long lifetime

Design & Features

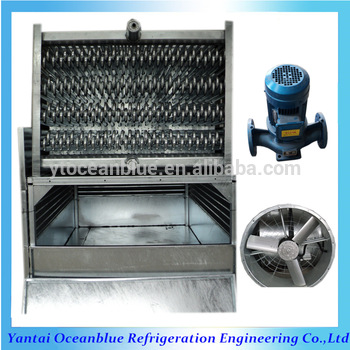

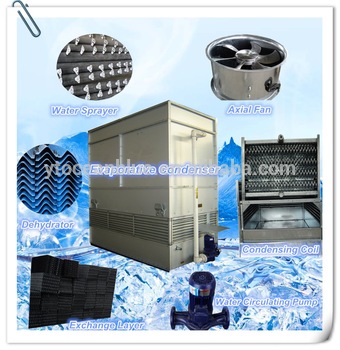

Detailed Images

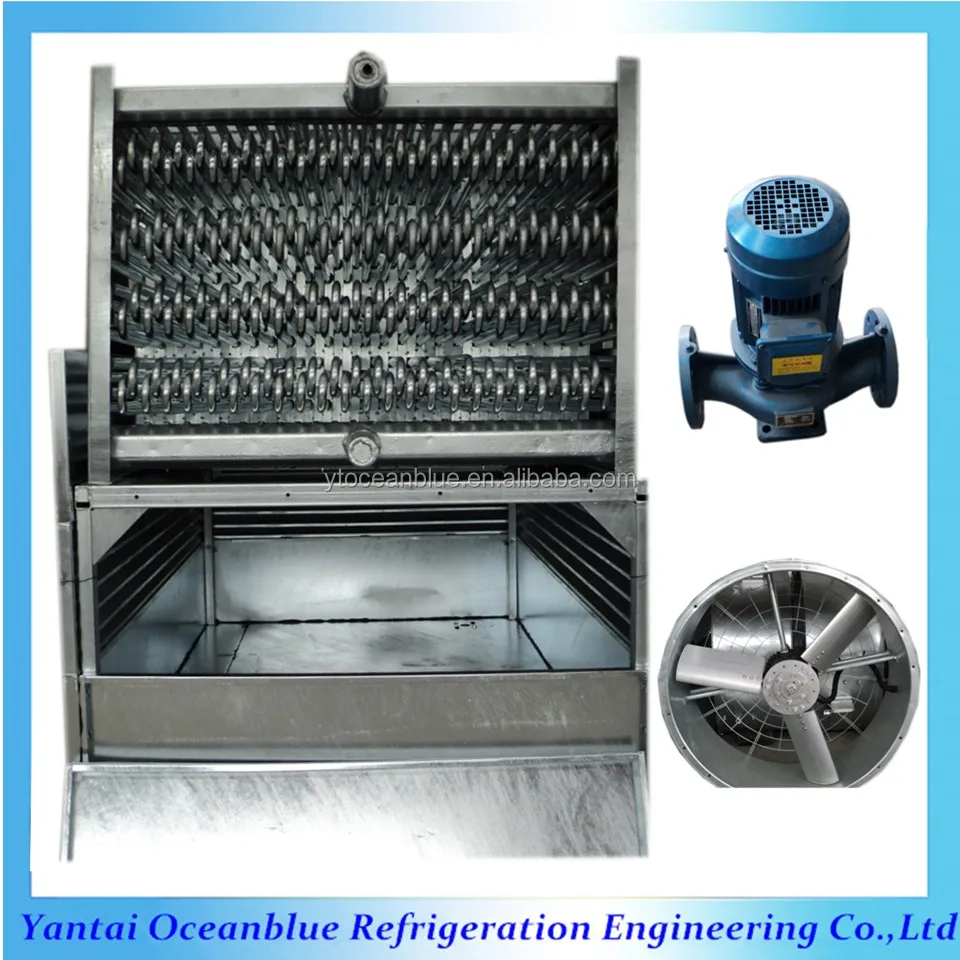

Condensing Coil

1. Hot dip galvanized (anti-corrosion and long lifetime)
2. Special tube arrangement ensure a smarter size and high heat-exchange rate. All tubes are tested at 2.5MPa air pressure
3. Special oval tube ensure a better contacting of water on the outer surface of the tubes

Axial Fan

1. Low noise with large air-flow
2. Aluminum alloy blades
3. Damp-proof motor
4. One piece molded heavy duty construction

Water Pump

1.Low noise & Large water flow
2.Protection level IP55, Insulation level F
3.Trouble-free operation
