Hot selling waterpoof motor stainless steel ac motor 0 33 3hp

Hot selling waterpoof motor stainless steel ac motor 0 33 3hp

FOB Price:

US 288-510 / Piece

Min.Order Quantity:

20 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai port

Place of Origin:

Shanghai, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

Products Model:

Electric Motor

Products Details
Company Profile

Quick Details

Brand Name: GW

Model Number: Electric Motor

Place of Origin: Shanghai, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Details: Export standard: inner box+carton+wooden case Delivery Detail: Within 20-30 days after received the deposit
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

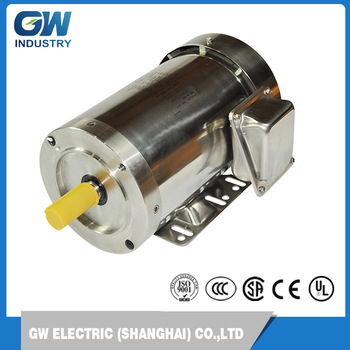

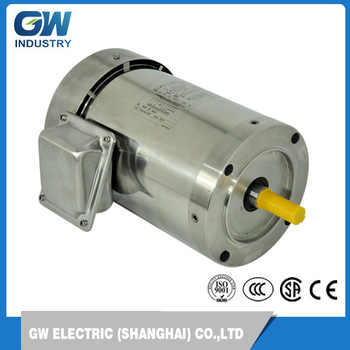

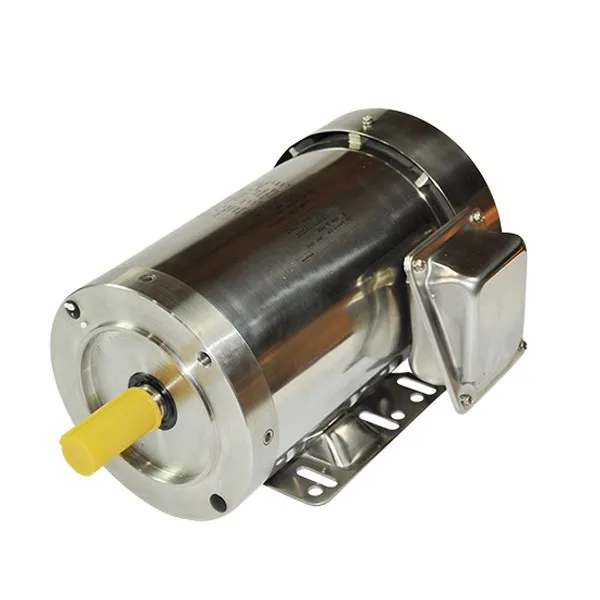

Hot selling NEMA Stainless steel washdown duty ac motor 0.33-3hp

FEATURES
· IINVERTER RATED - 6-60HZ CT, VT / PWM VFD 1.0 S.F.
· Waterproof seals on shaft extensions
· Drain holes (4) in endbells to facilitate draining in any mounting position
· T-drain (1) comes installed in non-shaft endbell at base position - can berelocated.
· 2nd T-drain for shaft end provided for customer installation at proper drainage point

Motor Technical Data

STAINLESS STEEL - 3 phase Washdown Duty - 56 & 145T motor

S.F : 1.15

DUTY:CONT.

HP	RPM	FRAME	REF.NO.	VOLTAGE	230V FLA	EFF%	INS.	ENCL.	WGT LB/KG
.33	1800	56C	N56BC33S18D30NN31	230/460	1.2	73.4	F	TENV	30/13.6
.33	3600	56C	N56BC33S36D30NN31		1.3	54	F	TENV	27/12.3
.50	1800	56C	N56BC05S18D30NN31	230/460	1.7	78.6	F	TENV	33/14.9
.50	3600	56C	N56BC05S36D30NN31		1.9	56	F	TENV	28/12.8
.75	1 800	56C	N56BC75S18D30FN31	230/460	2.3	81.6	F	TENV	43/19.6
.75	3600	56C	N56BC75S36D30FN31		2.7	63	F	TENV	30/13.7
1.0	*1 800	1 43TC	143THC10P18D30FN31	230/460	3.0	85.5	F	TEFC	47/24.4
1.0	*3600	1 43TC	143THC10P36D30FN31		2.6	80	F	TEFC	39/17.8
1.5	*1 800	1 45TC	145THC15P18D30FN31	230/460	4.4	86.5	F	TEFC	48/21.8
1.5	*3600	143TC	143THC15P36D30FN31		3.8	84	F	TEFC	46/20.9
2.0	*1 800	1 45TC	145THC20P18D30FN31	230/460	5.4	86.5	F	TEFC	53/24.1
2.0	*3600	1 45TC	145THC20P36D30FN31		5.0	85.5	F	TEFC	48/21.8
3.0	*3600	1 45TC	145THC30P36D30FN31	230/460	7.2	86.5	F	TEFC	53/24.1

Packing & Delivery

Packaging Details: Export standard: inner box+carton+wooden case

Delivery Detail: Within 20-30 days after received the deposit

GW Industry is a leading motor manufacturer which was formally known as Shanghai Micro Motor Factory (established in 1952) and joint venture with Regal-Beloit from 2002 to 2014. The JV manufactured motors for Regal Beloit under the Leeson, Marathon, and Lincoln brands.After dissolution in 2014, this entity has become part of GW Industrial Group.

Our company produces and sells a variety of NEMA/IEC design motors including single-phase / three-phase AC asynchronous motors, brush/brushless DC motors under brand “GW”, “AG-I”, and “SMC”. Over 70% of our products are sold to US, Canada, and European markets, serving industrial applications such as Fan-Blower, Agricultural Equipment, Wash-Down Equipment, Pump, Hydraulic Machinery, Transmission Apparatus, etc.

To satisfy customer’s needs, our products are certified by UL, CSA, CE, and CCC; and all materials in our products comply with RoHS requirements. Our lab has been certified by UL and CSA since 2007, being capable of performing UL/CSA certification test on site.
