GE ELECTRIC factory produced IE3 3 phase ac induction motor 1 5kw

GE ELECTRIC factory produced IE3 3 phase ac induction motor 1 5kw

FOB Price:

US 84-130 / Piece

Min.Order Quantity:

20 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai port

Place of Origin:

Shanghai, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

Products Model:

Electric Motor

Products Details
Company Profile

Quick Details

Brand Name: GW

Model Number: Electric Motor

Place of Origin: Shanghai, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Details: Export standard: inner box+carton+wooden case Delivery Detail: Within 20-30 days after received the deposit
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

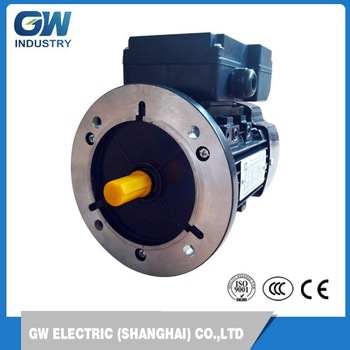

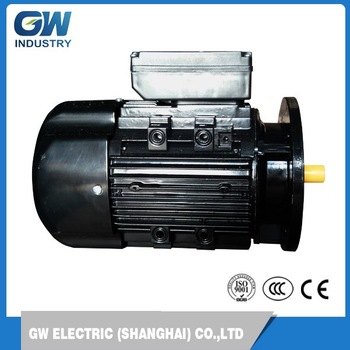

GE ELECTRIC factory produced IE3 3 phase ac induction motor 1.5kw

FEATURES
· ICE standard design
· High efficiency, IE-3 and China Efficiency Class 2 (IE-3 EFFICIENCY)
· High quality of starting performance
· Fit for full-load starting machine and equipment application
· Mounting:B3,B14,B34,B5,B35

Motor Technical Data

IP CODE:IP55 S.F.:1

HP/KW	RPM	FRAME	GW REF. NO.	VOLTAGE	FLA	EFF%	INS. CLASS	DUTY	WGT LB/KG
1.0/.75	2820	80	80B10E30D33FN	220/380	3.0/1.7	80.7	F	CONT	21.0/9.5
	1420	80	80B10E15D33FN	220/380	3.1/1.8	82.5	F	CONT	30.0/13.7
	950	90	90B10E10D33FN	220/380	3.5/2.0	78.9	F	CONT	34.4/15.6
1.5/1.1	2880	80	80B15E30D33FN	220/380	4.2/2.4	82.7	F	CONT	27.5/12.5
	1440	90	90B15E15D33FN	220/380	4.5/2.6	84.1	F	CONT	36.8/16.7
	950	90	80B15E10D33FN	220/380	5.2/3.0	81.0	F	CONT	37.0/16.8
2.0/1.5	2900	90	90B20E30D33FN	220/380	5.5/3.2	84.2	F	CONT	35.7/16.2
2.0/1.5	1440	90	90B20E15D33FN	220/380	5.9/3.4	85.3	F	CONT	42.5/19.3
3.0/2.2	2900	90	90B30E30D33FN	220/380	7.8/4.5	85.9	F	CONT	39.0/17.7

ManufacturingProcess

GW Industry is a leading motor manufacturer which was formally known as Shanghai Micro Motor Factory (established in 1952) and joint venture with Regal-Beloit from 2002 to 2014. The JV manufactured motors for Regal Beloit under the Leeson, Marathon, and Lincoln brands.After dissolution in 2014, this entity has become part of GW Industrial Group.

Our company produces and sells a variety of NEMA/IEC design motors including single-phase / three-phase AC asynchronous motors, brush/brushless DC motors under brand “GW”, “AG-I”, and “SMC”. Over 70% of our products are sold to US, Canada, and European markets, serving industrial applications such as Fan-Blower, Agricultural Equipment, Wash-Down Equipment, Pump, Hydraulic Machinery, Transmission Apparatus, etc.

To satisfy customer’s needs, our products are certified by UL, CSA, CE, and CCC; and all materials in our products comply with RoHS requirements. Our lab has been certified by UL and CSA since 2007, being capable of performing UL/CSA certification test on site.
