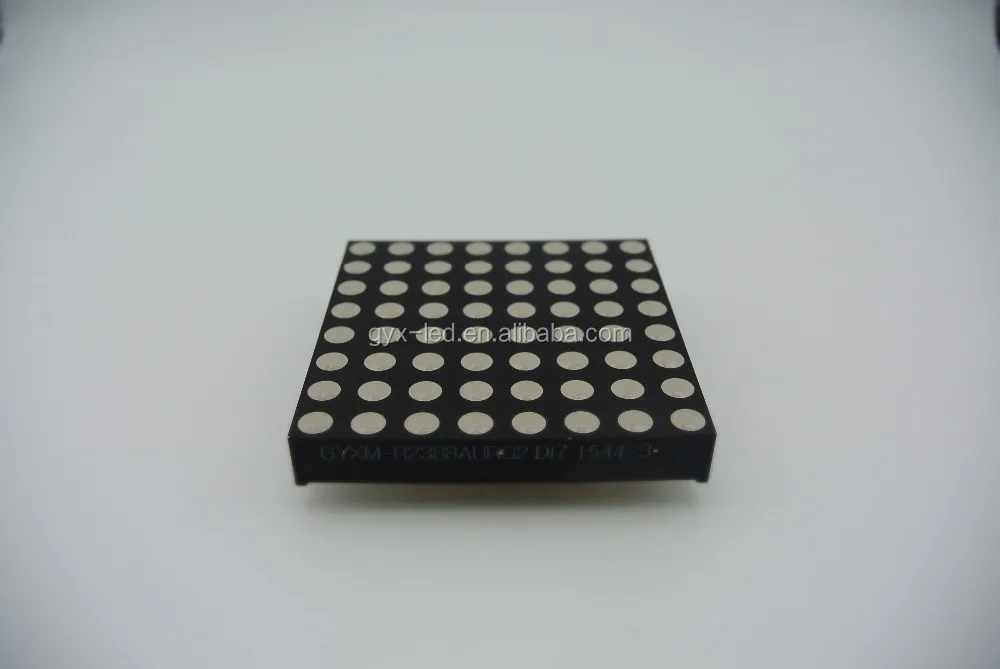

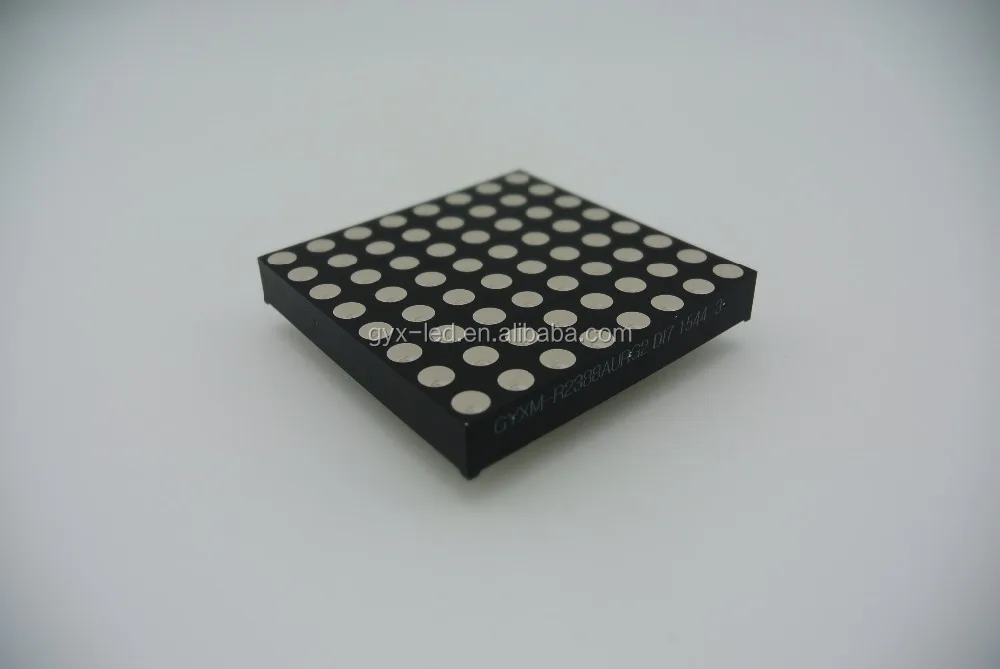

high reliability red and green color 8 8 dots LED dot matrix display sign

Dot Matrix LED Displays are capable of displaying a full range of alphanumeric characters and simple graphics when assembled in panels.

Specifications:

Standard products are available for choose with different size, dot array, dot size, color, also the custom products are available for design and produce.

Dot size: Φ2.1, Φ2.97, Φ3.0,Φ3.7, Φ4.8, Φ5.0,Φ7.62, Φ10

Dot array: 5 x 8, 5 x 7, 8 x 8

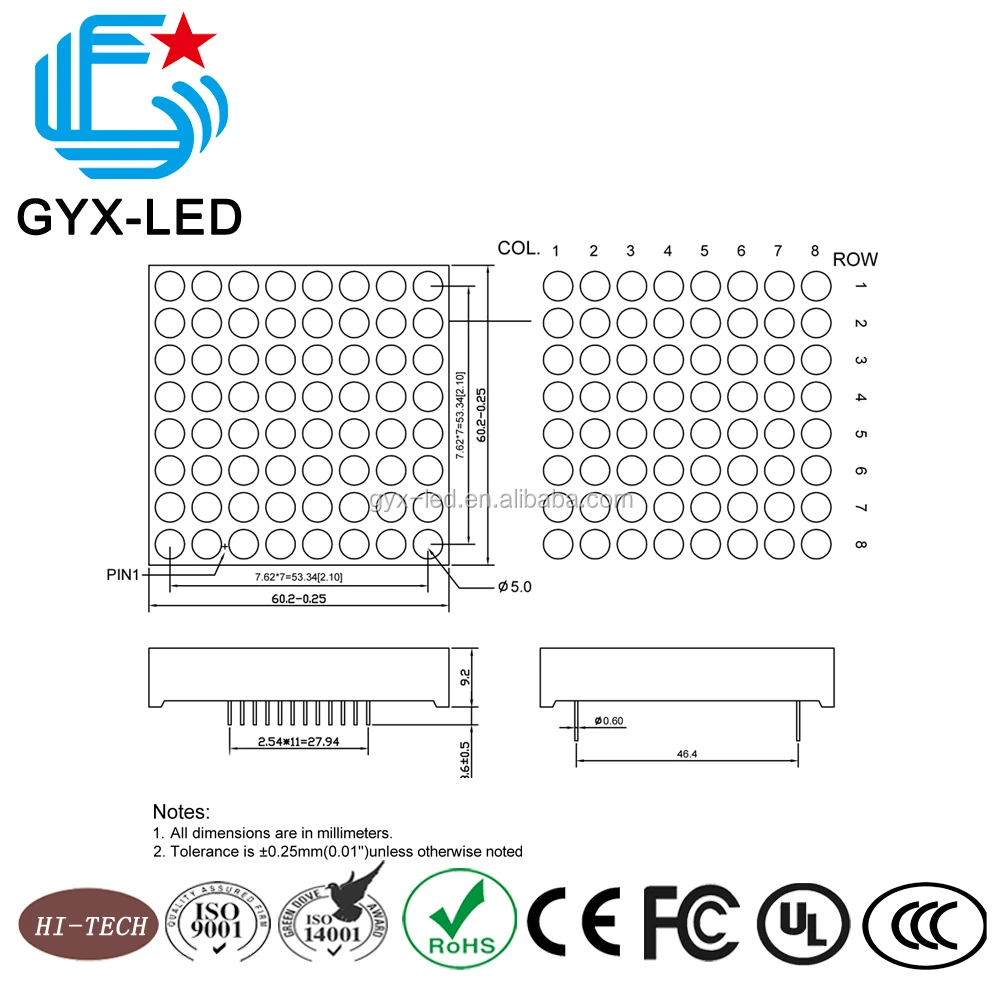

Display size: 23.4*37.4mm, 25.19*42.79mm, 32*32mm, 37.7*37.7mm,38.1*53.3mm, 47.8*47.8mm, 48*48mm, 50.7*50.7mm, 60.5*60.5mm (0.7 inch, 1.3 inch, 1.5 inch, 1.9 inch, 2.3 inch, 5.1 inch )

Color: red, green, yellow, blue, orange, amber, bi-color, tri-color

Pitch:  2.5mm, 4.0mm, 4.6mm, 4.7mm, 4.75mm, 6.0mm, 6.35mm, 7.62mm

Surface: white, black or gray surface

Face Point Color: Gray or black

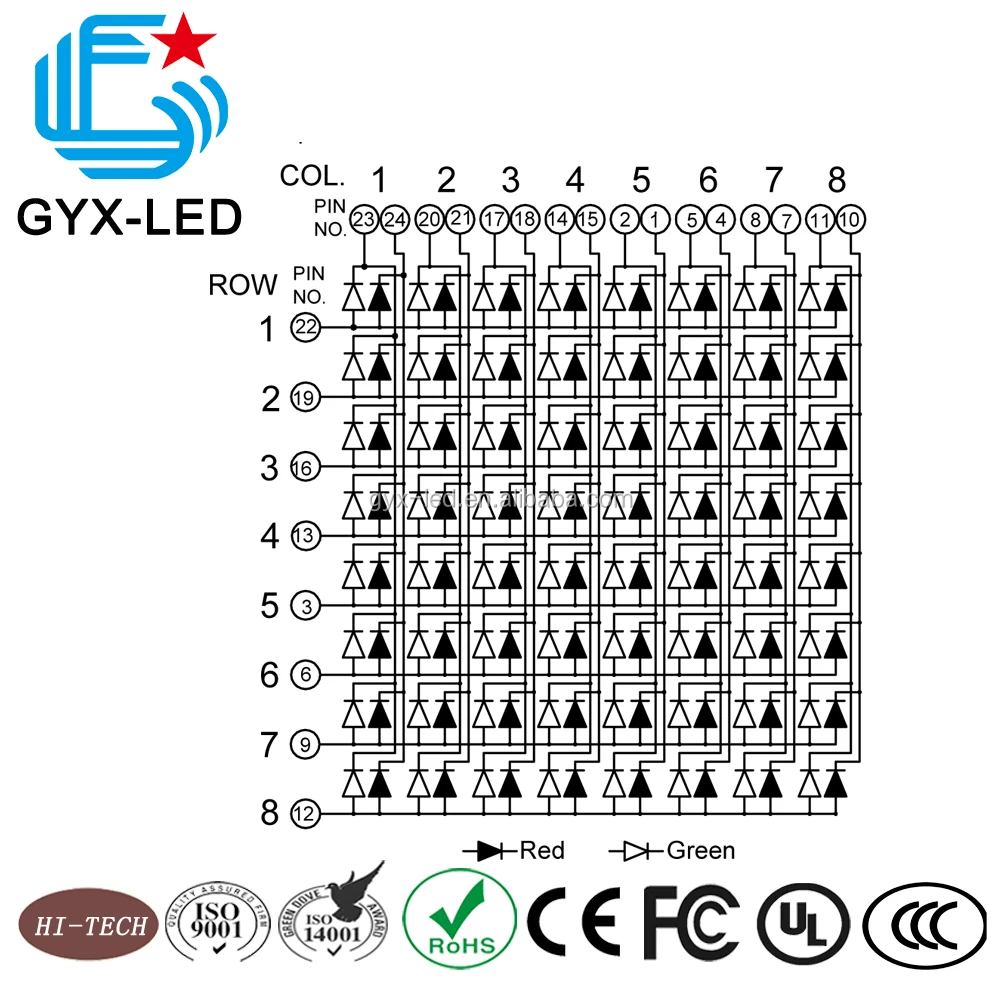

Polarity: Common Anode/Cathode

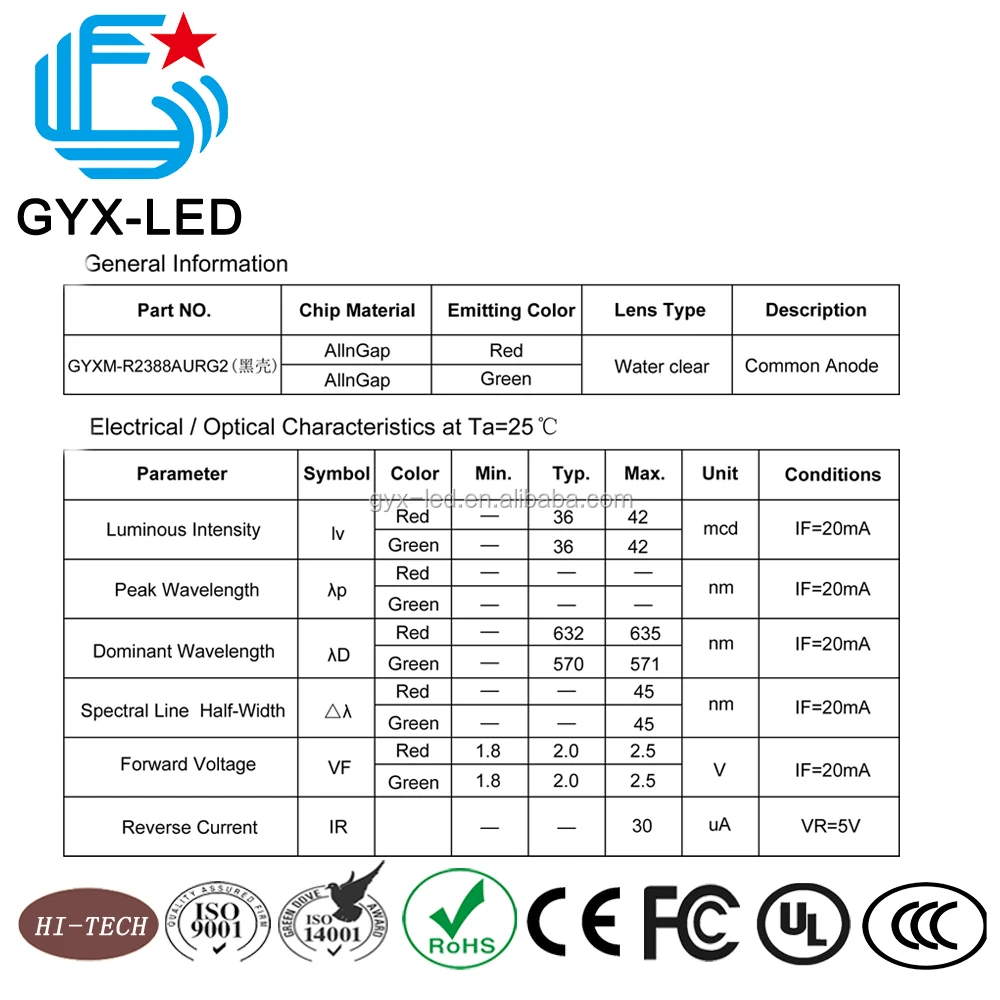

Emitting colors: Red / Yellow green / Yellow / Amber / Blue / White / Pure green

Features:

• Viewable up to 12 meters
• X-Y stackable
• Industry standard pin out, dual in line (DIP) leads on 2.54mm (0.1 in.) centers
• Low forward voltage
• Low power consumption
• High luminous intensity output
• Categorized for luminous intensity
• High efficiency
• Uniform brightness
• Easy mounting on printed circuit board and sockets
• IC compatible
• Good display and wide visual angle
• Rohs and Reach compliant

• LED Display in Bus station,Metro station and high speed train display
• Bank,super-market,school,hospital, garage, parking lot and other place
• Automotive advertising screen
• Audio equipment or instrument panels
• Multimedia products
• Indoor and outdoor display
• General use for digital indicators
