Brand Name: YUTONG
Model Number: YY(Q)W
Place of Origin: Henan, China (Mainland)

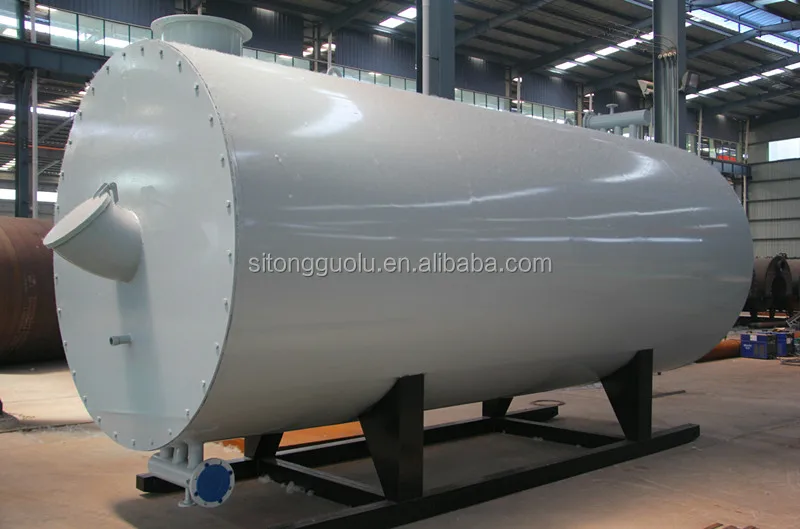

Automatic Industrial Palm Oil Boiler Thermax Oil Boiler for Mill
This series boiler takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.so the boiler can get higher working temperature at low pressure, and make a better usage of heat, it is a kind of safe boiler with high efficiency and low power consumption.
This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.
Features:
1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.
2. Less heat loss, high Thermal Efficiency.
3. Excellent Struture, advanced techniques.
4. Simple operation, serious control.
Technical Parameters:
Model |
YYW-120YC |
YYW-230YC |
YYW-350YC |
YYW-470YC |
YYW-700YC |
YYW-930YC |
YYW-1200YC |
||||
Rated power(KW) |
120 |
230 |
350 |
470 |
700 |
930 |
1200 |
||||
Design |
0.9 |
||||||||||
Rated working |
0.6 |
||||||||||
Highest working |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
||||
Furnace oil |
0.1 |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
1 |
||||
Circulation oil |
12.5 |
32 |
40 |
60 |
80 |
100 |
100 |
||||
Pipe connection diameter(DN) |
50 |
65 |
80 |
80 |
100 |
125 |
125 |
||||
Thermal Efficiency |
75 |
80 |
85 |
85 |
85 |
85 |
85 |
||||
Size (m) |
1.5x1.1x1.4 |
2.0x1.2x1.5 |
2.5x1.3x1.6 |
2.7x1.6x1.9 |
3.1x1.6x1.9 |
3.8x1.7x2.0 |
3.8x1.8x2.1 |
||||
Weight (t) |
2 |
2.9 |
3.7 |
4.5 |
4.9 |
5.5 |
6.5 |
Production process
Henan Sitong Boiler Co.,Ltd.is devoted to heat energy field and has the word’s leading heating technology which are specialized in manufacture all kinds of boilers which included Hot Water Boiler , Steam Boiler, Hot Air Stove, Organic Heat Carrier Furnace ,etc .
Our product have won the trust and support from our customers both at home and abroad ,which have been exported to Southeast Asia, Central Europe, Middle East and other countries .welcome you inquiry .

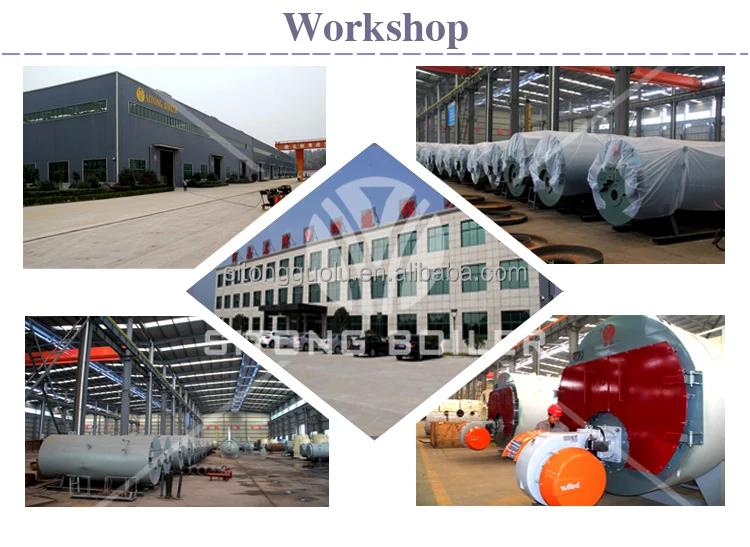

Factory:
Offices:
Business Exhibition:
Warranty and after-sale service
Sitong promises the top quality of every set of machine and best
after-sales service as followings:
1.The boiler body guarantee is two years, for accessories three years.
2.During the guarantee period , if the main body defective or broken without wrong operating ,Sitong must replace the parts for free or prepare the spare-parts for free.
3.Sitong should provide boiler technical service and operation guidance for whole life
long.
4.Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets).
