Brand Name: YUTONG
Model Number: YGL/YLL/YLW
Place of Origin: Henan, China (Mainland)
Why choose thermal oil boiler ?
1. The choice between a steam system or a thermal fluid system is governed by the process requirements. The range or process temperature is a deciding factor. If the systems required temperature is above the freezing point of water (32°F) and below approximately 350°F, the choice is usually steam. However, if the required temperature is below 32°F or above 350°F, thermal fluid may be a better solution.
2. Reliability and rugged long life construction ;
3. Guarantee on both the burner and the boiler ;
4. Efficiency, which can be higher than 92% over the operating range ;
5. Investments and maintenance costs reduced ;
6. Optimised heat balance, associates the high output of the boiler with very low thermal losses on the distribution system which means very high overall plant efficiency ;
7. Very short response time, low inertia ;
8. Optimisation of the thermal coefficient of transfer of the boundary layers ;
9. Low pressure of operation normally no more than total system resistance (10 bar max) for high temperature (350°C) ;
10. Well suited for indirect process heating;
Biomass Thermal Oil Boiler Technical parameters
Data |
Type |
Parameters |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
YLW- |
Rated power Kw |
1900 |
2300 |
2900 |
3500 |
4100 |
4700 |
5900 |
7000 |
8200 |
9400 |
12000 |
14000 |
||
Heating load×104kcal/h |
160 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
700 |
800 |
1000 |
1200 |
||
Thermal efficiency% |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
76 |
||
Design pressure Mpa |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
||
Maximum working temperature |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
||
Medium circulation load m3/h |
160 |
160 |
200 |
200 |
260 |
260 |
300 |
340 |
400 |
520 |
600 |
680 |
||
Volume of medium in boiler m3 |
2.8 |
3 |
4 |
4.5 |
5.1 |
5.5 |
7.2 |
8.3 |
8.9 |
9.9 |
12.3 |
16 |
||
Caliber of master tube DN |
150 |
150 |
200 |
200 |
200 |
200 |
250 |
250 |
250 |
300 |
300 |
350 |
||
Installed capacity kw |
75 |
90 |
100 |
100 |
120 |
140 |
175 |
215 |
215 |
270 |
315 |
380 |
||
Appropriate coal material |
Similar soft coal |
|||||||||||||
Coal consumption kg/h |
360 |
450 |
565 |
678 |
790 |
904 |
1130 |
1356 |
1582 |
1808 |
2260 |
2710 |

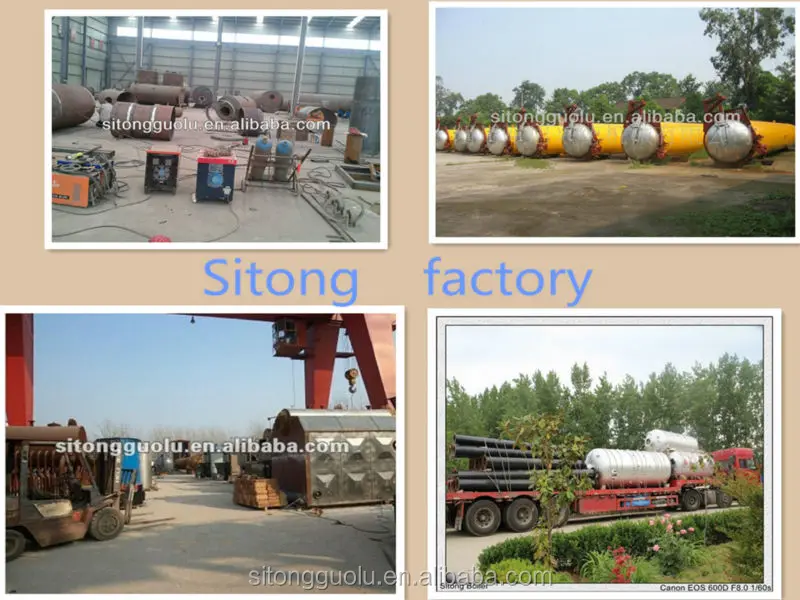

More pictures of biomass thermal oil boiler for your reference
