Brand Name: YUTONG
Model Number: YGL/YLL/YLW
Place of Origin: Henan, China (Mainland)
Henan Sitong Boiler Co., Ltd. is devoted to heat energy field and working to develop efficient, safe, environmental protection, energy-saving heating equipment. Our company applied rich experience and knowledge to the design and development, has the word's leading heating technology. Our company develops a full series on heating equipment, including steam boiler, hot water boiler, hot air stove, organic heat carrier furnace, etc.
Biomass Thermal Oil Boiler Hot Oil Heater
Horizontal Thermal Oil Boiler,Hot oil Boiler, Wood Fired Thermal Oil Boiler
Biomass Fuel Thermal Oil Boiler Price
Product Description:
1. This series boiler is a new type of special boiler with low pressure, high-temperature. The heating temperature can reach liquid 340°C or steam 400°C. If your craft need to be heated stable and do not allow to use flame directly, it can reach 150°C-380°C and used in a variety of production situations.
2. The furnace use generally coal, oil and steam as fuel, and this series boiler takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
3. So the boiler can get higher working temperature at low pressure, and make a better usage of heat, it is a kind of safe boiler with high efficiency and low power consumption.
We absorb the essence of the Germany technology, through our engineers' innovating improvement, it's competitive in the international market now.
Technical parameters of thermal oil boiler
Model | Unit | YGL-120MA | YGL-230MA | YGL-350MA | YGL-470MA | YGL-700MA | YGL-930MA | YGL-1200MA | YGL-1400MA | |
Rated power | Kw | 120 | 230 | 350 | 470 | 700 | 930 | 1200 | 1400 | |
Thermal efficiency | % | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Design pressure | Mpa | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | |
Working pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
Highest working temperature | °C | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Furnace capacity | m³ | 0.07 | 0.22 | 0.28 | 0.38 | 0.55 | 0.75 | 0.86 | 0.95 | |
Circulation | m³/h | 12 | 20 | 40 | 60 | 80 | 100 | 100 | 100 | |
Connection diameter | mm | 50 | 65 | 80 | 80 | 100 | 125 | 125 | 125 | |
Size | Diameter | mm | 1215 | 1500 | 1650 | 1700 | 2030 | 2160 | 2160 | 2200 |
Height | mm | 2310 | 2750 | 2850 | 3300 | 3450 | 3850 | 4250 | 5100 | |
Reference weight | t | 2.5 | 3.2 | 4.8 | 5.3 | 5.8 | 6.2 | 6.7 | 7.3 |

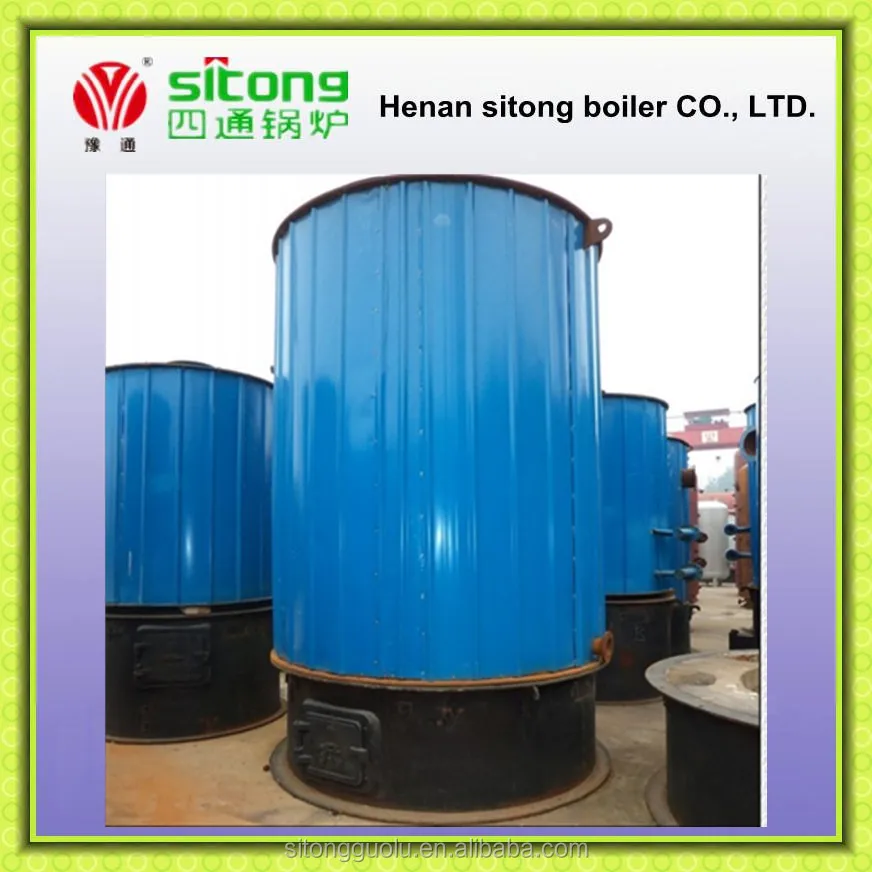

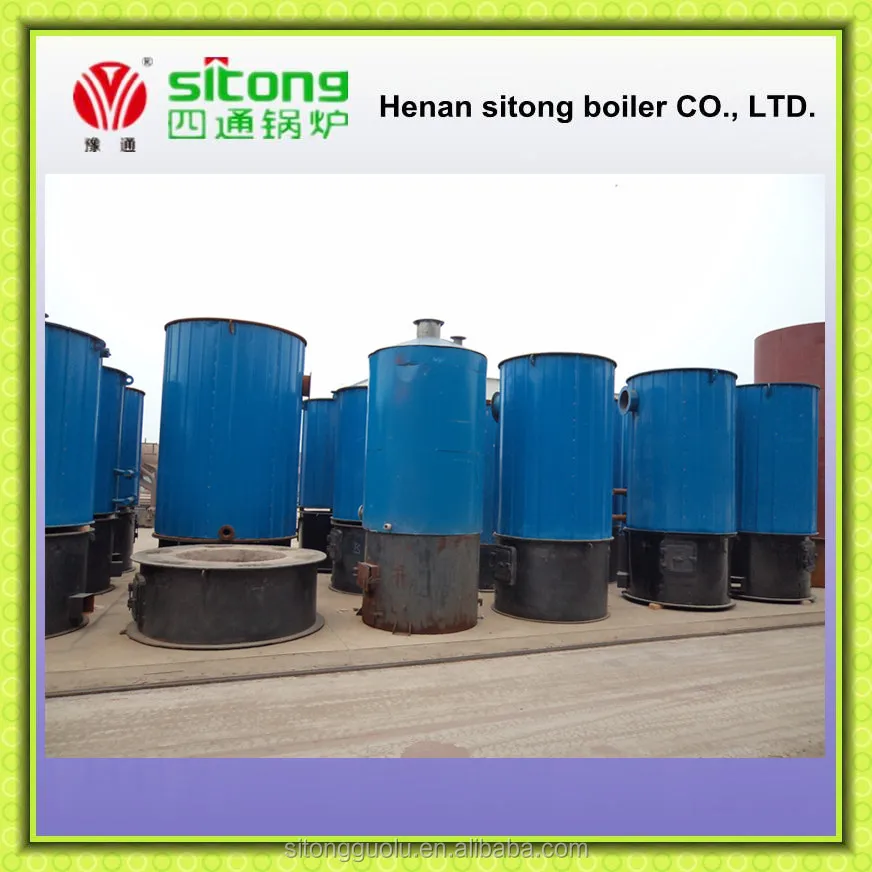

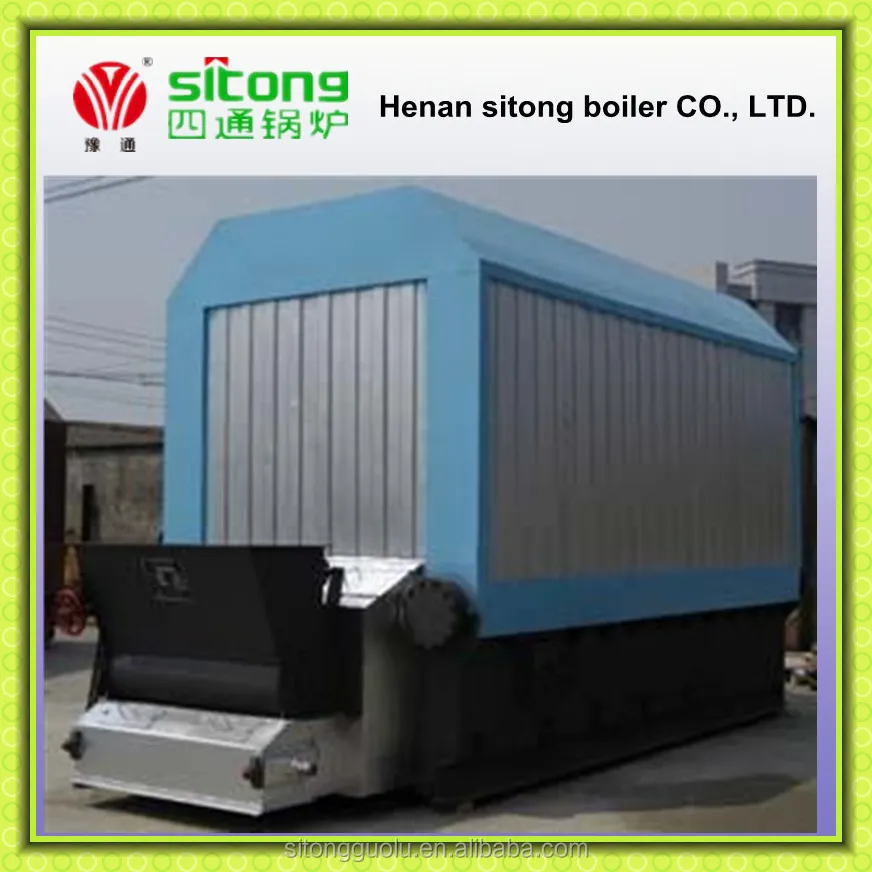

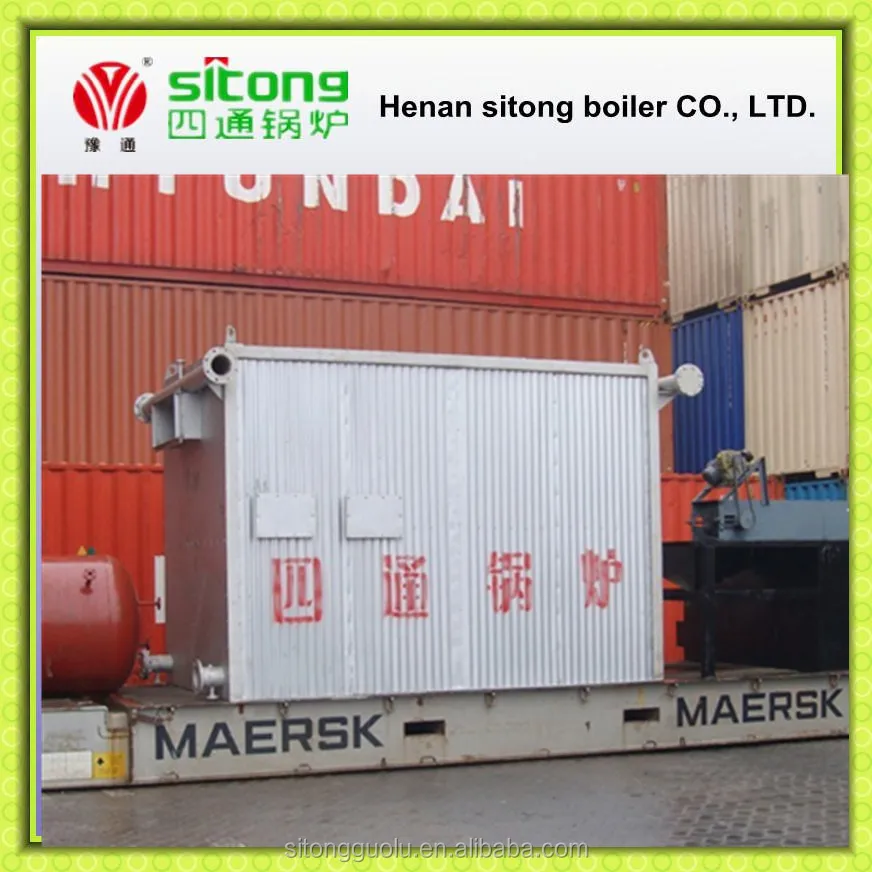

More pictures of thermal oil boiler
