Brand Name: Detai immersion heating element
Model Number: XD-74241
Place of Origin: Guangdong, China (Mainland)

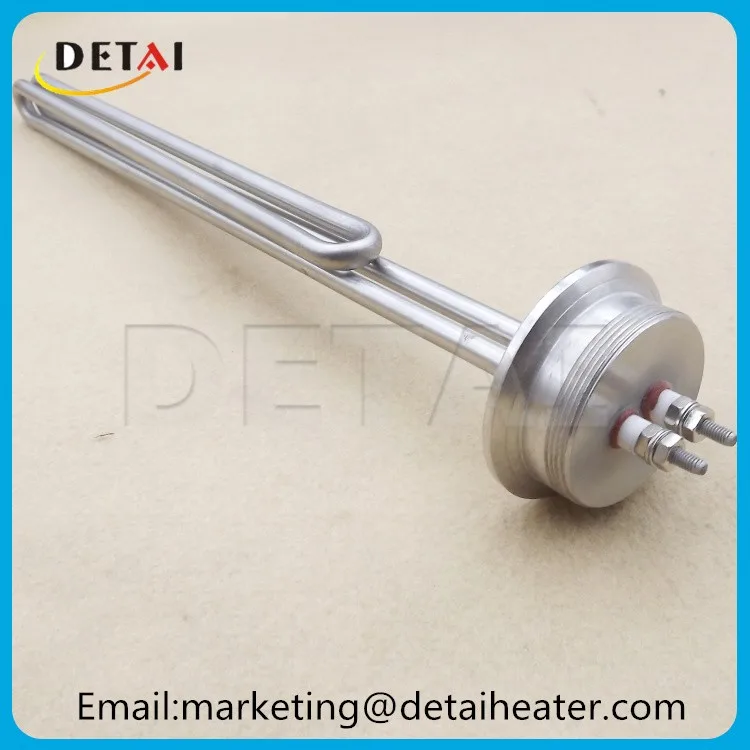

2"Triclamp foldback shape immersion heating element
1.Basic specifications of immersion heating element
Material: | Stainless steel 304, 316, 321 |
Pipe diameter: | 8mm |
Heater length: | Customized/recommended by engineers based on power |
Watt: | 3200w |
Volt: | 220V |
Flange/thread: | 2" Triclamp or any customzied size. |
2. Technical datas of immersion heating element
Power tolerance: | +5%, -10% |
Size tolerance: | ± 3mm |
Cold pressure capacity: | 1500v/0.5mA/S |
Hot pressure capacity: | 1250v/0.5mA/S |
Leakage current: | When rated voltage is used, leakage current |
FAQ
1. Are you manufacturer or trade company?
We are a professional factory specialized in customizing various heating element since 1995.
2. What information do you need for quotation?
Watt & volt(a must), length & diameter(optional, can be suggested by our engineers),quantity & other specific requirements.
3. How long is the lead time?
Usually 10-15 days.
4. Can you put our logo on the heater?
Yes, no problem. Please provide us with your authorization letter.
5. Can you make as per to my requirements?
Of course, all the heaters are customized.
6. How can I contact you?
Email: marketing(at)detaiheater.com
Skype:detaiheater3
Wechat/Whatsapp/Mobile: 0086-13790687581
