Brand Name: Detai cartridge heater
Model Number: DAC-75222
Place of Origin: Guangdong, China (Mainland)
Immersion type cartridge heater with thread connection
Cartridge heater application
1. Heating of Mould Tools
2. Tooling
3. Packaging Machinery
4. Heat Sealing Equipment
5. Plastic Process Machinery
6. Food Process Machinery
7. Catering
8. Printing
9. Hot Foil Printing
10. Shoe manufacturing Machinery
11. Laboratory / Test Equipment
12. Vacuum Pumps
Cartridge heater Specs, Recommended for temperatures up to 750°
All cartridge heaters are available with a built in Thermocouple Type J or K
Sheath Material |
SUS 304/316/ Incoloy 840 |
Spirals |
Nickel - Chrome |
Insulation |
Magnesium Oxide Powder |
Voltage Supply |
12V to a maximum of 480V |
Maximum Temperature |
750 °C |
Resistance Tolerance |
+10% - 5% |
Wattage Tolerance |
+5% - 10% (closer tolerances are available upon special request) |
There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred.

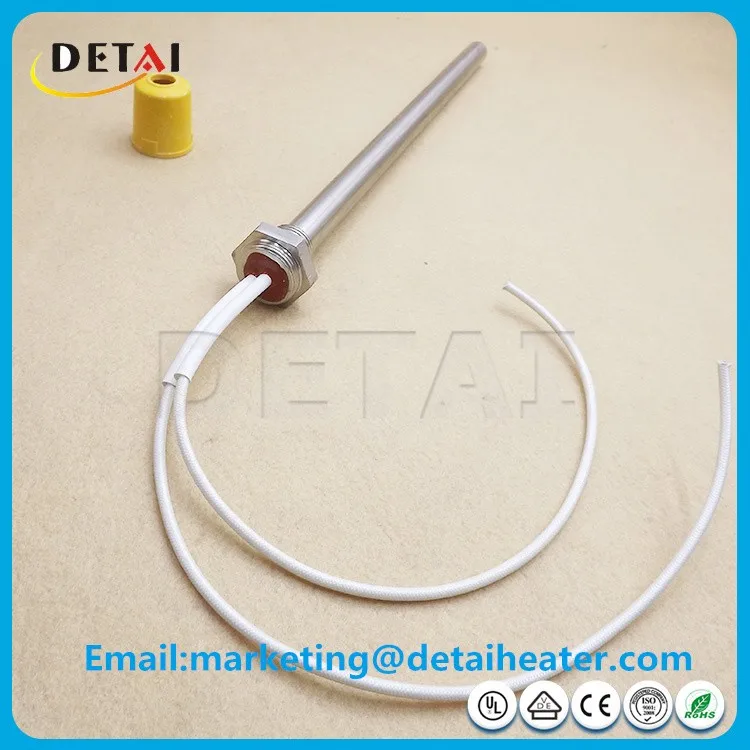

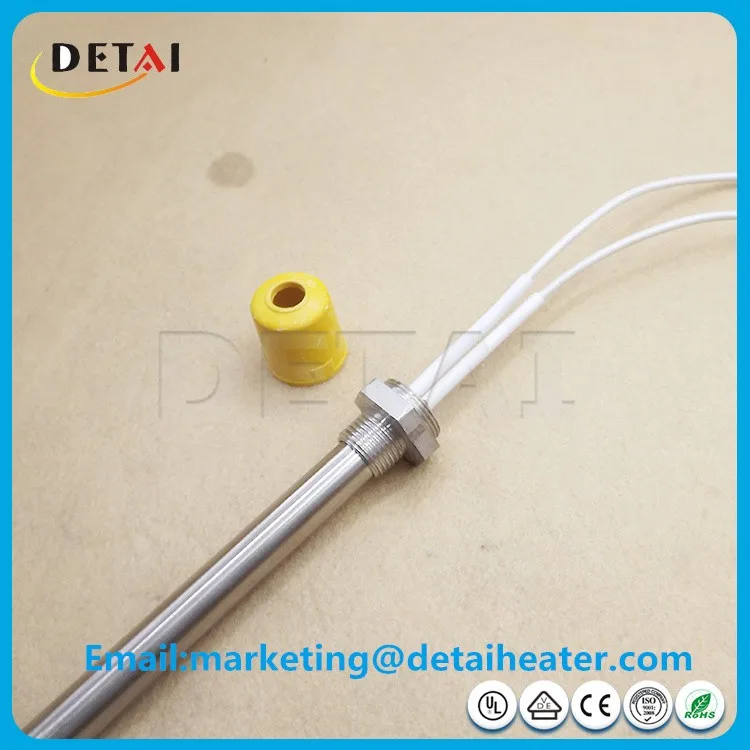

Detailed Images of cartridge heater
FAQ
1. Are you manufacturer or trade company?
We are a professional factory specialized in customizing various heating element since 1995.
2. What information do you need for quotation?
Watt & volt(a must), length & diameter(optional, can be suggested by our engineers),quantity & other specific requirements.
3. How long is the lead time?
Usually 10-15 days.
4. Can you put our logo on the heater?
Yes, no problem. Please provide us with your authorization letter.
5. Can you make as per to my requirements?
Of course, all the heaters are customized.
