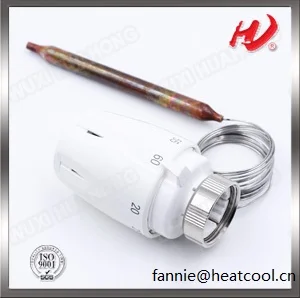

TF 13 thermostatic head with remote sensor

FOB Price:

Open price

Min.Order Quantity:

1200 Piece/Pieces

Supply Ability:

300000 Piece/Pieces per Year

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

HUAHONG

Products Model:

TF-13

Products Details
Company Profile

Quick Details

Brand Name: HUAHONG

Model Number: TF-13

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: one type:50pcs per box and 1200 pcs per pallet antoher type:60pcs per box and 1800 pcs per pallet
Delivery Detail: Shipped in 28 days after payment

Specifications

Product Description

Thermostats of this type are proportional controller without external energy requirement for the temperature-dependent control of warm air heaters, hot water generators, heat exchangers, etc.The remote sensor is directly immersed into the medium.

Features
Remote sensor for water and air
Equipped with memory-clip
Equipped with limiting and blocking tabs

Features

Remote sensor for water and air

Equipped with memory-clip

Equipped with limiting and blocking tabs

Materials
• Handwheel and lid made of plastic, white to RAL9010
• Socket made of grey plastic
• Support cage and spindle construction made of plastic
• Liquid-filled copper sensor phial with copper capillary tube

Materials

• Handwheel and lid made of plastic, white to RAL9010

• Socket made of grey plastic

• Support cage and spindle construction made of plastic

• Liquid-filled copper sensor phial with copper capillary tube

Technical datas

Maximum admissible static pressure	Maximum admissible differential pressure	Temperature range	Temperature regulation scale
1.0Mpa	0.1Mpa	20~60°C	20℃~60℃
dependent upon used TRV body	dependent upon used TRV body
Closing dimension	Capillary tube length	Installation size
12.2	2000mm	M30x1.5

Packing information:

Model	Box size(mm)	Carton size(cm)	PCS/CTN	G.W.(kg)	Pallet size(cm)	PCS/each pallet
TF-13	160x60x80	42x34x32	50	9.5	86X105X128	1200
TF-13	clapboard packing	46.5X31X20.5	60	9.72	95X96X102.5	1800

Our Service:

We can also make OEM and ODM according to your requirements.

LOGO printing can be made as you need.
