dead end service lug BFV

FOB Price:

US 1-5000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

TIANJIN XINGANG

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,as customer's request

Brand:

GALA

Products Model:

2502

Products Details
Company Profile

Quick Details

Brand Name: GALA

Model Number: 2502

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: each pc into one bubble plastic bag,several pcs into one wooden crate or according to customers requirements
Delivery Detail: within 30 days

Specifications

1.MSS/API/BS design.
2.Size:DN40-700.
3.Working pressure:PN10/16/25.
4.ISO9001/ABS/CCS/DNV/CE.
5.Flange:AWWA/BS/EN/JS etc.

Who we are?

Our company is alibaba gold member for nine year.We have attend the large-scale exhibition at home and abroad each year.We are valves manufacturer,factory located in Tianjin. our mainly products for fire products, water works and HVAC.More information,welcome to visit us:www.galars.info

Our product features are as follows:

1.Newly developed facilities ensure high and stable quality.

2.Enable to supply UL/FM valves.

3.Experienced technology

4.Excellent after-sale service to satisfy customers.

5.Sufficient capacity ensures prompt delivery.

6.Continuous quality improvement and new designs development.

7.Reasonable and stable price

8.Meets different countries standards,such as ANSI,DIN,BS etc.

Technical Data

Valve Standard:

MSS SP-67

API 609 Category A

BS EN593/BS5155

Nominal diameter:

1.5"-28"/DN40-DN700

Working pressure:
10Bar/16Bar

Face-to-face:

API 609 Table 1

ISO 5752 Series 20

EN 558 Series 20 (DIN 3202 T3 K1)

BS 5155 Series 4

Flange accommodation:

ANSI B16.1 Class125/150

AWWA C207

MSS SP44 Class150

DIN 2501 PN6/10/16
EN1092-2 PN6/10/16
BS10 Table D/E

JIS B2220 5K/10K/16K

AS4087 PN14/16

Top Flange:

ISO5211

Tightness check:

API 598

ISO 5208,

EN12226-2

General Applications

Chemically corrosive media

Purification plants

Pharmaceutical industry

Adhesives Paper industry,Fuel Transport

Paint manufactur and processing

Food Industry

Material Specification

Part	Material	ASTM
Body	Ductile iron	A536 65-45-12
	Cast iron	A126 Class B
Disc	Ductile iron	A536 65-45-12
	Bronze	B148 C95400
	Stainless steel304	A351 CF8
	Stainless steel316	A351 CF-8M
Shaft	Stainless steel 410	A276 S410 00
	Stainless steel431	A276 S431 00
Seat Ring	EPDM/NBR
O Ring	EPDM/NBR
Bushing	PTFE
	Bronze	B62 C83600

Dimensions of dead end services butterfly valve

DN	mm	40	50	65	80	100	125	150	200	250
	inch	1-1/2	2	2-1/2	3	4	5	6	8	10
	A	68	80	89	95	114	127	139	175	203
	B	110	161	175	181	200	213	226	260	292
	C	24	30	30	30	30	30	30	34	34
	L	33	42	45	45	51	55	55	60	67
DN	mm	300	350	400	450	500	550	600	650	700
	inch	12	14	16	18	20	22	24	26	28
	A	242	267	316	334	370	433	468	484	530
	B	337	368	400	422	480	533	562	540	626
	C	34	40	42	52	64	70	70	70	95
	L	76	76	102	114	127	151	151	172	165

GALA - Extends Business on a Global Perspective.
GALA company offers a wide range of products and systems in the field of valves, piping, and seismic isolation for applications ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control. Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services!

GALA - Professional Manufacturer of Industrial Valves
GALA have variety products to meet customer demand of different valve. Designing, manufacture and sale of one-stop service is the company's core strengths.

GALA products cover the following industry area:
Water supply system, water treatment, food, chemical, cement, air-conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on. GALA anti-pollution environmental protection industry is one of the major business. GALA provides various valve for wastewater processing and exhaust gas processing.

GALA have wide variety of industrial valves, including following main products:
Fire protection valve
Balancing Valve
Butterfly Valve
Gate Valve,Globe Valve,Check Valve,Ball Valve
Strainer
Flexible Rubber Joint

Other Valves and fittings are also available from GALA.
All products will be designed, manufactured and assembly by GALA.

Basic Information

Business Type: Manufacturer
Main Products:
Location: HeBei, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency: USD,EUR,CNY
Accepted Payment Type: L/C,D/A,D/P,T/T
Nearest Port: FOB XINGANG

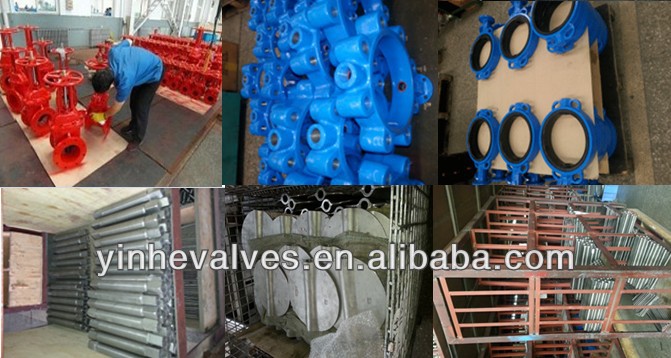

Company Photos
