Rotork gear operated butterfly valve

FOB Price:

US 1-5000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

TIANJIN XINGANG

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,as customer's request

Brand:

GALA

Products Model:

CWBV2302

Products Details
Company Profile

Quick Details

Brand Name: GALA

Model Number: CWBV2302

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: each pc into one bubble plastic bag,several pcs into one wooden crate or according to customers requirements
Delivery Detail: within 30 days

Specifications

1.MSS/API/BS design.
2.Size:DN40-600
3.Working pressure:PN10/150PSI.
4.IS09001/ABS/CCS/DNV/CE.
5.Flange:AWWA/BS/EN etc.

Introduction

We, Tianjin Galaxy Valve, is one of the biggest valve manufacturers and exporter in Northern China,is also alibaba gold member for nine year.We have attend the large-scale exhibition at home and abroad each year.Products are mainly used for fire protection,water works,HVAC,marine,etc. Our income in 2012 achieved to 30,000,000 USD. Welcome to visit our web:www.galars.info.

Nominal diameter: 2 in - 24 in

Face-to-face: EN 558 Series 20 (DIN 3202 T3 K1)

ISO 5752 Series 20

API 609 Table1

BS 5155, Tab. 6 Series 4

NF E 29-305.1

Flange accommodation: DIN 2501 PN 10/16

ANSI B 16.5, Class 150

MSS SP44 Class 150

AWWA C 207

AS 2129 Table D and E

BS 10 Table D and E

JIS B 2211-5 K

JIS B 2212-10K

Tightness check: DIN 3230 T3 BO (Leakage Rate 1)

ISO 5208, Category 3

API 598 Table 5 and

ANSI B 16-104, Class VI

General Applications:

Chemically corrosive media

Purification plants

Pharmaceutical Industry

Adhesives,paper Industry,Fuel Transport

Paint manufacturer and processing

Food Industry

Pressure Temperature Ratings

Working pressure:10bar/150psi

Testing pressure: Shell:15bar/225psi Seal:11bar/165psi

Working Pressure: -20°C to 110°C EPDM backed

-10°C to 80°C NBR backed

Material Specification

Part	Material	ASTM
Body	Cast iron	A126 Class B
	Ductile iron	A536 Gr.65-45-12
	Carbon steel	A216WCB
	Stainless steel	A351 CF8M/CF8
Disc	Bronze	B148 C95400
	Stainless steel 304	A351 CF8
	Stainless steel 316	A351 CF-8M
Shaft	Stainless steel 410	A276 S410 00
	Stainless steel 316	A276 S316 00
Seat	PTFE
O-Ring	Fluorcabon Caoutchouc	VITON

Dimensions

Size	MM	40	50	65	80	100	125	150	200
	Inch	1-1/2	2	2-1/2	3	4	5	6	8
	A	68	80	89	95	114	127	139	175
	B	110	161	175	181	200	213	226	260
	C	24	30	30	30	30	30	30	34
	L	33	42	45	45	51	55	55	60
Size	MM	250	300	350	400	450	500	600
	Inch	10	12	14	16	18	20	24
	A	203	242	267	316	334	370	468
	B	292	337	368	400	422	480	562
	C	34	34	40	52	52	64	70
	L	68	78	78	102	114	127	154

GALA - Extends Business on a Global Perspective.
GALA company offers a wide range of products and systems in the field of valves, piping, and seismic isolation for applications ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control. Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services!

GALA - Professional Manufacturer of Industrial Valves
GALA have variety products to meet customer demand of different valve. Designing, manufacture and sale of one-stop service is the company's core strengths.

GALA products cover the following industry area:
Water supply system, water treatment, food, chemical, cement, air-conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on. GALA anti-pollution environmental protection industry is one of the major business. GALA provides various valve for wastewater processing and exhaust gas processing.

GALA have wide variety of industrial valves, including following main products:
Fire protection valve
Balancing Valve
Butterfly Valve
Gate Valve,Globe Valve,Check Valve,Ball Valve
Strainer
Flexible Rubber Joint

Other Valves and fittings are also available from GALA.
All products will be designed, manufactured and assembly by GALA.

Basic Information

Business Type: Manufacturer
Main Products:
Location: HeBei, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency: USD,EUR,CNY
Accepted Payment Type: L/C,D/A,D/P,T/T
Nearest Port: FOB XINGANG

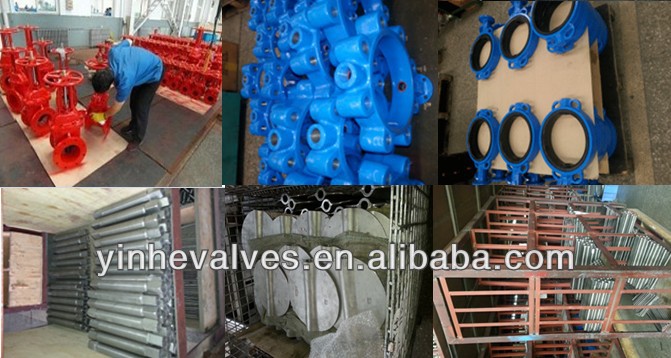

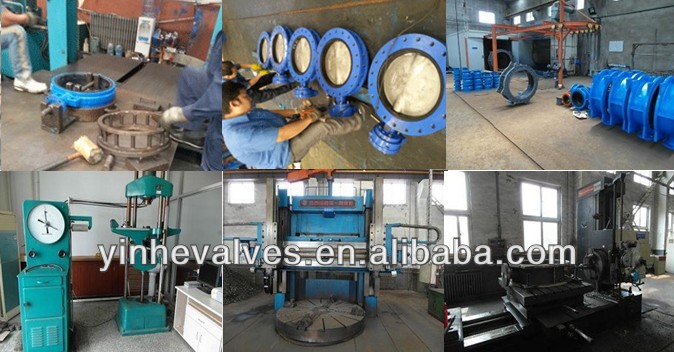

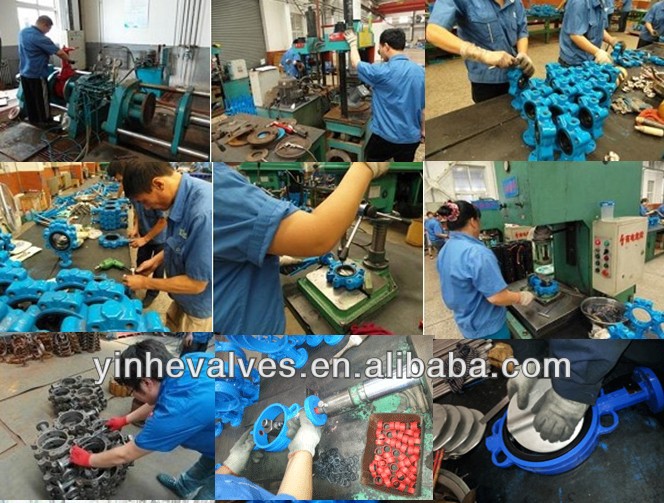

Company Photos
