Brand Name: GALA
Model Number: 2302
Place of Origin: Tianjin, China (Mainland)

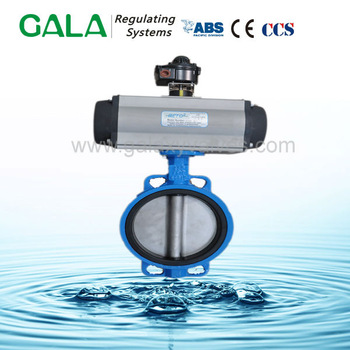

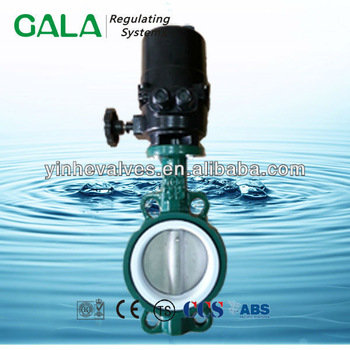

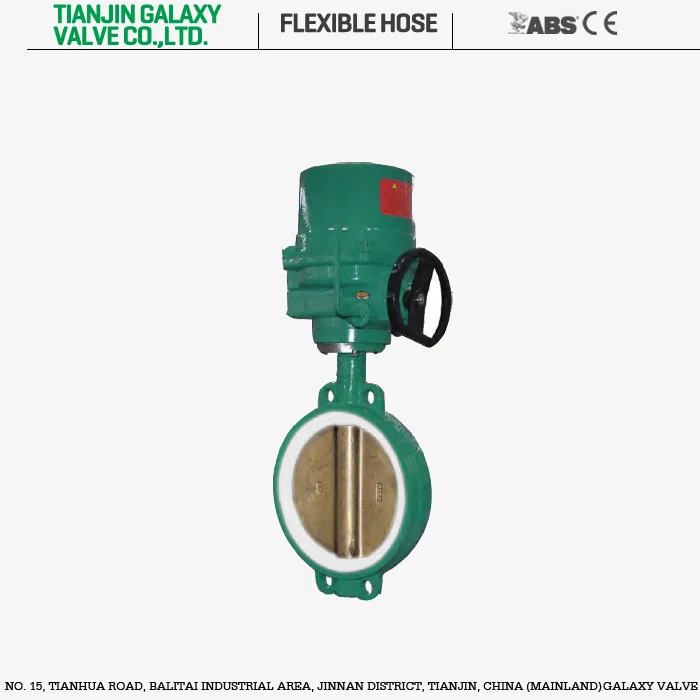

4 inch wafer type epdm seat motorized butterfly valve dn100
4 inch wafer type epdm seat motorized butterfly valve dn100
| Standard and Price | |
| FIG NO. | 2302 |
| Price Range | $190.04-$7196.46 |
| Valve Standard | Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609 |
| Pressure Temprature and Rating | |
| Working Pressure | 16bar/25bar |
| Testing Pressure | Shell: 24bar/37.5bar |
| Seal: 17.6bar/27.5bar | |
| Working Temperature | -20°C to 110°C EPDM Seat |
| -10°C to 80°C NBR Seat | |
| Suitable Media | Water, Oil & Gas |
| Material Specification | ||
| Part | Material | EN Spec. |
| Body | Cast Iron | A126 Class B |
| Ductile Iron | A536 Gr. 65-45-12 | |
| Disc | Ductile Iron | A536 Gr. 65-45-12 |
| Bronze | B148 C95400 | |
| Stainless Steel 304 | A351 CF-8 | |
| Stainless Steel 316 | A351 CF-8M | |
| Shaft | Stainless Steel 410 | A276 S 410 00 |
| Stainless Steel 431 | A276 S 431 00 | |
| Seat Ring | EPDM / NBR | |
| O-Ring | EPDM / NBR | |
| Bushing | PTFE | |
| Bronze | B62 C83600 | |
Tianjin Galaxy Valve Co.Ltd offers a wide range of products and systems in the field of valves for application ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control. Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services.
Tianjin Galaxy Valve Co.Ltd including following main products:
Other valves and fittings are also available from GALA
All products will be designed, manufactured and assembly by GALA
More information you can visit our website www.galaxyvalves.com.
Our conventional packing is wooden case packing, we go to great lengths to ensure delivery within 30 days after receipt your order.
4 inch wafer type epdm seat motorized butterfly valve dn100
Our product features are as follows:
1.Newly developed facilities ensure high and stable quality.
2.Enable to supply UL/FM valves.
3.Experienced technology
4.Excellent after-sale service to satisfy customers.
5.Sufficient capacity ensures prompt delivery.
6.Continuous quality improvement and new designs development.
7.Reasonable and stable price
8.Meets different countries standards,such as ANSI,DIN,BS etc.
Why you choose us? Please believe us, our product have been certified that :
² T/T
² 30% in advance, others before shipment.
² 82 USD should be charged once total valve less 5000 USD/shipment.
2. MOQ:
² brass&bronze valve 100 pieces (OEM: 5000 pieces)
² water application valve 1 piece
² fire protection valve 1 piece
² balancing valve 1 piece
² joints 100 pieces
3. Delivery time: shipment after 30 days.
4. Warranty period: 2 years
5. Terms of the sample: We can negociate for the sample.
Q: What is your target market?
A:Our products have been exported to 30+ countries and regions in global markets, such as U.S.A., Canada, UK, France, the
Netherlands, Italy, Australia, South Africa, Malaysia, Singapore, Hong Kong and so on.
Q: Can I get samples from your company?
A: of course, if you are interested in our company and enquiry, we will try our best to meet your requirements.
Q: Can I go to visit your company?
A: of course, Tianjin Galaxy Valve Co.Ltd has own entity factory, you can come to inspect our production process and office, we will provide you the best service.
