Brand Name: GALA
Model Number: gate valve
Place of Origin: Tianjin, China (Mainland)

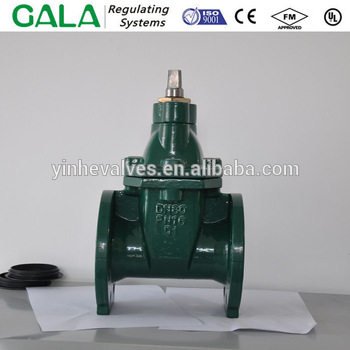

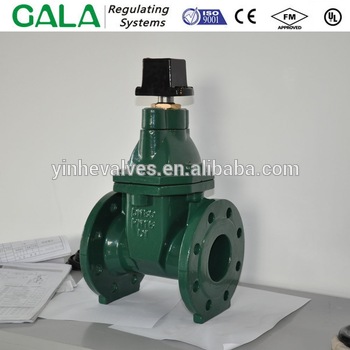

2" to 30" flange gate valve
Pressure and Temperature Specification:
working pressure |
200psi |
testing pressure |
shell:300psi |
seal:220psi |
|
working temperature |
-4degree to 230 degree 14 degree to 176 degree |
suitable media |
water,oil&gas |
Material Specification:
Part |
Material |
ASTM
|
Valve Body |
Ductile Iron |
A536 Gr.65-45-12 |
Valve Disc |
EPDM Coated DI |
A536 Gr.65-45-12 |
Bonnet |
Ductile Iron |
A536 Gr.65-45-12 |
Stem |
EPDM/NBR |
|
More Details

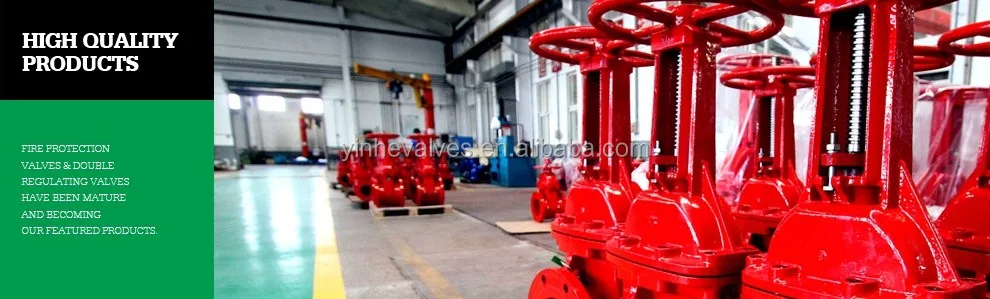

OUR MILL& WAREHOUSE :100% REAL PHOTOS
OUR CERTIFICATION:
