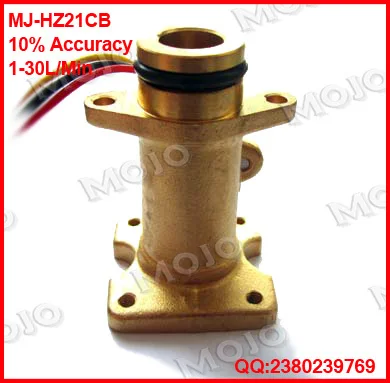

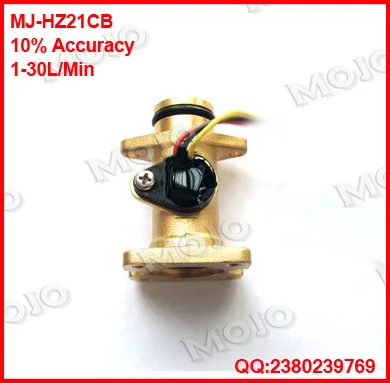

MJ-HZ21CB Brass Integrated water flow rate sensor

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor.
When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

Brand Name: MOJO
Model Number: MJ-HZ21CB
Material: BRASS
Flow dameter: G1/2"
Flow Core: Hall sensor for Japan
Rateing Voltage: 5V
Flow range: 1-30L/min
Flow accuracy: 10%
Flow temperature: -20~80°
Dielectric resistance: >100 Ohm
Wiring:Red for the positive, black for the negative, yellow for the pulse signal

Appearance:
Clean and beautiful, smooth without burr, without off color

Water pressure resistance performance:
1.75 MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly

Operating voltage range: DC4.5-18V

Maximum operating current: 15mA

The output pulse high level:
In 5 V rated voltage, the output of the high level requirements in 4.5 V above

The output pulse low level:
In 5 V rated voltage, the output of the low level requirements in 0.5 V the following

The output pulse duty ratio:

In the rated voltage, the output pulse occupies empties compared to 50%-10%

Flow pulse characteristics:
［8.1Q-3］±10%,1.25-30L/MIN,1L=463HZ±10%

Insulating property:
Dielectric resistance＞100MΩ

Electrical strength:
AC500V 50Hz(Don't breakdown or flash winding)

Electrical strength(80℃):
In 80 ℃ temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%

Cold resistance(-20℃):
In-20 ℃ temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%

Remark：

Don't disassemble when the product is found to have quality problems .
For dry air sensor within the residual water should pay attention to the blowing pressure <0.3MPa and intermittent output impeller.Can not be rotated at high speed in the anhydrous state .


Connection mode:

RED line for power+
BLACK line for power-
YELLOW line for signal output

Products are packed in cartons, using foam shock absorption and compression to prevent damage in transit.
Also can adjusted by your request.
