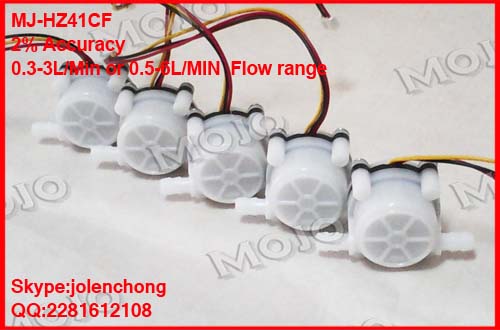

MJ HZ41CF Chemical flow meter

FOB Price:

US 4-6 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union,Paypal

Brand:

MOJO

Products Model:

MJ-HZ41CF

Products Details
Company Profile

Quick Details

Brand Name: MOJO

Model Number: MJ-HZ41CF

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

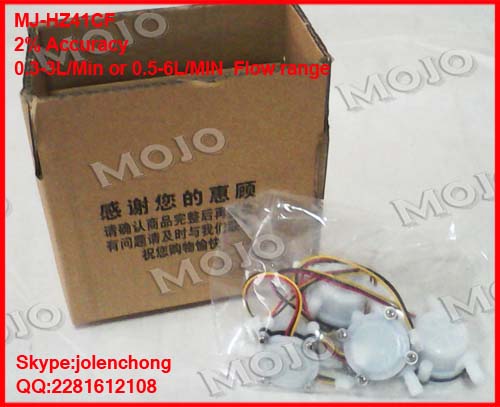

Packaging Details: 20pcs/backage
Delivery Detail: 5days

Specifications

1.Environmental protection design POM materia
2.Small, practical
3.High Accuracy in 2%
4.can be arbitrary Angle adjustmen

Introduction

Product detail:

1, Environmental protection design, food grade material POM, small, practical, and can be arbitrary Angle regulation;

2,For the G1/4 the tooth type structures, unions, more convenient, can match fast by type nut and pipe plug.

3, Hall element for Japan imports, sensitive and reliable;

4, Flow range: 0.3- 3 L/min;0.5-6L/min(need to order).working voltage: DC5-24 V, Rated voltage DC5V;

5, output voltage (rated DC5V) : high level 4.5 V above, low level 0.5 V the following; Pulse output occupies emptiescompared to 50-10%;

6, designed for small flow and medicine machinery make water flow sensor, but also be used for electrical and mechanical equipment.

7,The Flow accuracy near 2%,and the Pulse character is 5800Hz/L.

Item	Examination requirement
Appearance	Clean and beautiful, smooth without burr, without off color
Water pressure resistance performance	0.35 MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly
Operating voltage range	DC5-24V, Rated voltage 5VDC
Maximum operating current	15mA
The output pulse high level	In 5 V rated voltage, the output of the high level requirements in 4.7 V above
The output pulse low level	In 5 V rated voltage, the output of the low level requirements in 0.5 V the following
The output pulse duty ratio	In the rated voltage, the output pulse occupies emptiescompared to 50%-10%
Flow pulse characteristics	See flow parameters and pulse cross-references
Insulating property	Dielectric resistance>100MΩ
Flow range	0.3~3L\min
Flow pulse characteristic	F=(98*Q)±2%, F for instantaneous pulse value (HZ), Q for transient flow (L/min)
Electrical strength	AC500V 50Hz(Don't breakdown or flash winding)
Electrical strength(80°C)	In 80 °C temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
Cold resistance(-20°C)	In 20 °C temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
Mode of connection	Red: the positive, black: negative, yellow: pulse signal
