Brand Name: P&N Tech
Model Number: Peltier air cooler
Place of Origin: Fujian, China (Mainland)

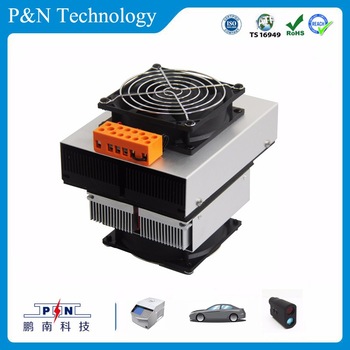

Peltier Thermoelectric Cooling Air Cooler 200W 150W 100W 70W 40W 24W
1)All products are RoHS and REACH compliant, SGS ISO9001 verified.
2) The product AA-200-48 Model with IP55 fans and heater sink.widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
4)Support Customizable. (P&N Tech Website: www.pengnantech.com )
5) The peltier air cooler have stock, the delivery time just few days!
Model No. | PC Max(W) | Current (A) |
Voltage (V) |
Ambient (℃) |
Weight (Kg) |
Dimensions(mm) L*W*H |
Package(mm) L*W*H |
Package (Kg) |
AA-24-12 | 24 | 2.4 | 12 | -10 to 50 | 0.59 | 100*83*121 | 180*200*190 | 1.10 |
AA-40-12 | 40 | 6.3 | 12 | -10 to 50 | 1.8 | 160*122*147 | 240*220*200 | 2.35 |
AA-40-24 | 40 | 3.2 | 24 | -10 to 50 | 1.8 | 160*122*147 | 240*220*200 | 2.35 |
AA-70-12 | 70 | 7.6 | 12 | -10 to 50 | 2.5 | 230*122*152 | 300*220*220 | 3.0 |
AA-70-24 | 70 | 3.8 | 24 | -10 to 50 | 2.5 | 230*122*152 | 300*220*220 | 3.0 |
AA-100-24 | 100 | 6.5 | 24 | -10 to 50 | 4.1 | 300*152*161 | 380*250*240 | 4.66 |
AA-100-48 | 100 | 3.3 | 48 | -10 to 50 | 4.1 | 300*152*161 | 380*250*240 | 4.66 |
AA-150-24 | 150 | 9.8 | 24 | -10 to 50 | 5 | 300*153*167 | 380*250*240 | 5.5 |
AA-150-48 | 150 | 4.9 | 48 | -10 to 50 | 5 | 300*153*167 | 380*250*240 | 5.5 |
AA-200-24 | 200 | 9.8 | 24 | -10 to 50 | 7.3 | 400*153*178 | 480*250*240 | 7.8 |
AA-200-48 | 200 | 7.3 | 48 | -10 to 50 | 7.3 | 400*153*178 | 480*250*240 | 7.8 |
