RGP hot oil hot water centrifugal pump RGP hot oil hot water centrifugal pump RGP hot oil hot water centrifugal pump

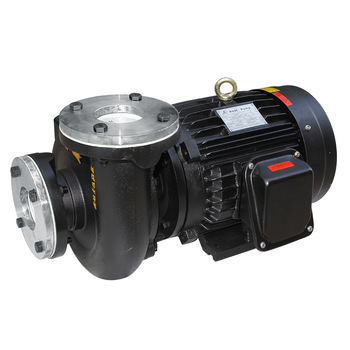

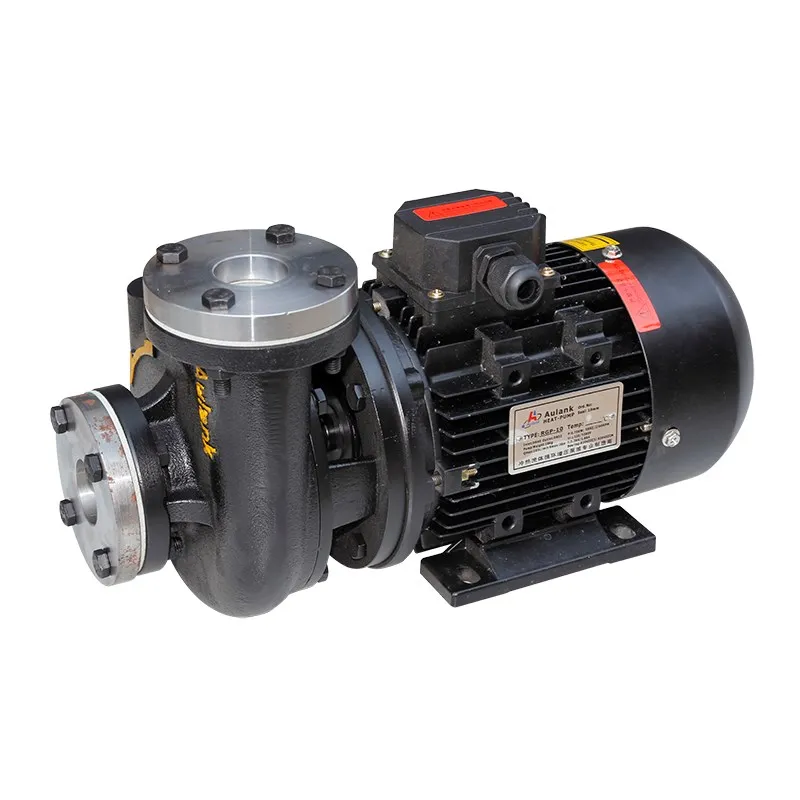

RGP hot oil hot water centrifugal pump

FOB Price:
Min.Order Quantity:
1 Twenty-Foot Container
Supply Ability:
5000 Twenty-Foot Container per Week
Port:
shanghai port
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram
Brand:
Yuan shin
Products Model:
RGP-10/20-30/40/120
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yuan shin

    Model Number: RGP-10/20-30/40/120

    Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

  • Packaging Details: carton package and wood case
  • Delivery Detail: Shipped in 7 days after payment

Specifications





RGP hot oil /hot water centrifugal pump

Product Description



♦♦ Detailed Introduction



RGP series high temperature centrifugal pump is widely used in TCL, leather processing machine, reaction kettle , wood processing machine and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.



♦♦ Technical Parameter



Type

Diameter

Motor

performance parameter

Pump Weight

(kg)

(KW)

power

(Hp)

Voltage(V)

Frequency

(Hz

Speed

(r/min)

Max Head

(m)

Max Capacity

(l/min)

RGP-10

G1”,G1.2”

G1.5”

0.75

1

3ø-380

50

2760

20

165

18

RGP-20

G1”,G1.2”

G1.5”,G2”

1.5

2

3ø-380

50

2760

24

235

25

RGP-30

G1”,G1.2”

G1.5”,G2”

2.2

3

3ø-380

50

2760

30

315

31.5

RGP-40

G1”,G1.2”

G1.5”,G2”

   3

4

3ø-380

50

2760

40

300

37

RGP-50

G1”,G1.2”

G1.5”,G2”

4

5

3ø-380

50

2760

45

367

60

RGP-60

G1”,G1.2”

G1.5”,G2”

4.5

6

3ø-380

50

2760

52

400

65

RGP-100

G1.5”,G2”

7.5

10

3ø-380

50

2900

50

680

110

RGP-120

G2.5”,G2”

9

12

3ø-380

50

2900

60

1200

115



♦♦ Material



Item

Name

Material

Technical Feature

01

Pump Cover

Cast Iron

High Tensile , High Hardness , Bright , Superior Hydraulic Performance



02

Shaft Seal Base

03

Motor

H Varnished Wire+SUS Spindle +CRS

Inserting Line Automatically , Vacuum Paint Dipping,

SUS304 Spindle , F class Insulation , IP54, Imported High temperature Bearing

04

Mechanical Seal

Carborundum +Graphite+Rubber+SUS spring

Heat-Resistant , Good Abrasion Performance, Stable Performance (Customizing According to the Medium )

05

Impeller

Copper

Precision Casting , High Density , High Manufacturing Precision , Superior Hydraulic Performance



♦♦ Installing Drawing









♦♦ Performance Chart









♦♦ Feature

Single Stage Impeller , Axial Suction , Radial water Absorption

Compact Structure, Water and Pump and Motor Connecting directly ,Coaxial Mounting .

Fine performance , High Efficiency

Fast Flow , High Temperature Resistant ,Stable sealing performance

Low Noisy ,Small Vibration

Easy to Remove , Low repairing Cost



♦♦ Using Condition





Thermal Conductivity Water

+5 - +160

Thermal conductivity oil

+5 - +200

Ethyleneglycol

-35 - +120

The working temperature

-5 - +40

The maximum elevation

1000m

The maximum morking pressure

10bar

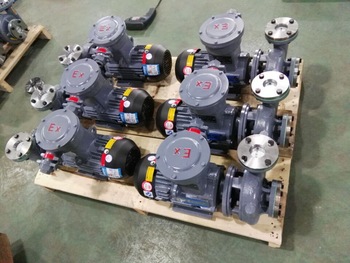

♦♦ Product







If you are interested in , please contact with me

Email : lois412@163.com

Phone: 0086-18550061324

Whatsapp: 0086-18550061324

Skype : susan3683
