4Hp hot water high temperature pump 4Hp hot water high temperature pump 4Hp hot water high temperature pump

4Hp hot water high temperature pump

FOB Price:
USD 100-1000 / Set
Min.Order Quantity:
1 Twenty-Foot Container
Supply Ability:
1000 Twenty-Foot Container per Month
Port:
shanghai port
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
L/C, D/A, D/P, T/T, Western Union
Brand:
Yuan shin
Products Model:
RGP-40
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yuan shin

    Model Number: RGP-40

    Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

  • Packaging Details: playwood case
  • Delivery Detail: according to order quantity

Specifications



4Hp hot water high temperature pump



Product Description



♦♦ Detailed Introduction





RGP series high temperature centrifugal pump is widely used in TCL, leather processing machine, reaction kettle , wood processing machine and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.



♦♦ Technical Parameter



Type



Diameter

Motor

performance parameter

Pump Weight

(kg)







power

(KW)



(Hp)

Voltage

(V)



Frequency

(Hz)



Speed

(r/min)



Max Head

(m)



Max Capacity(l/min)





RGP-10

DN25,DN32,DN40

0.75

1

3ø-380

50

2760

20

165

18

RGP-20

DN25,DN32,DN40,DN50

1.5

2

3ø-380

50

2760

24

235

25

RGP-30

DN25,DN32,DN40,DN50

2.2

3

3ø-380

50

2760

30

315

31.5

RGP-40

DN25,DN32,DN40,DN50

    3

4

3ø-380

50

2760

40

300

37

RGP-50

DN25,DN32,DN40,DN50

4

5

3ø-380

50

2760

45

367

60

RGP-60

DN25,DN32,DN40,DN50

4.5

6

3ø-380

50

2760

52

400

65

RGP-100

DN40,DN50

7.5

10

3ø-380

50

2900

50

680

110

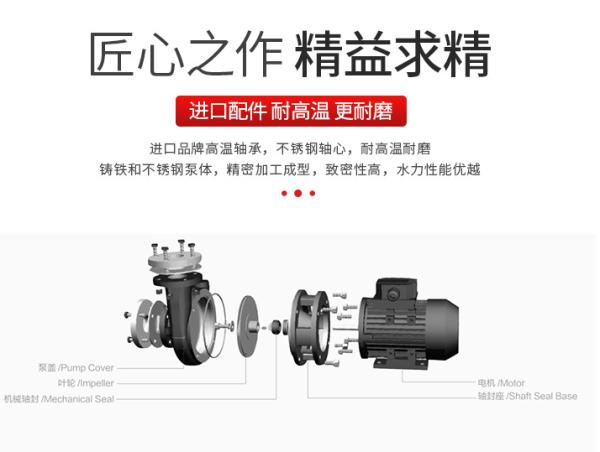

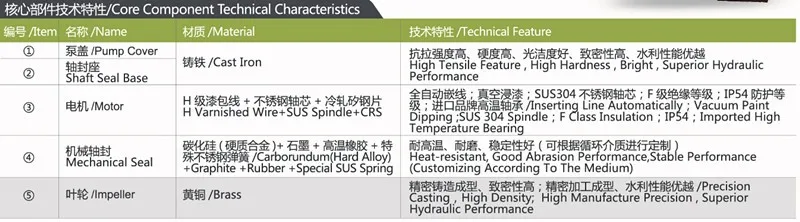

♦♦ Core Component Technical Characteristics







♦♦ Installing Drawing







♦♦ Performance Chart







Testing Base: The above characteristic testing is based on the water transferring with the normal

              speed under 20 degrees. The error of the capacity and head is about 10%,

              characters ‘error is about 10%. The pump characters change according to the



♦♦ Feature





Single Stage Impeller , Axial Suction , Radial water Absorption

Compact Structure, Water and Pump and Motor Connecting directly ,Coaxial Mounting .

Fine performance , High Efficiency

Fast Flow , High Temperature Resistant ,Stable sealing performance

Low Noisy ,Small Vibration

Easy to Remove , Low repairing Cost





♦♦ Using Condition





Thermal Conductivity Water

+5℃ - +160℃

Thermal conductivity oil

+5℃ - +200

Ethyleneglycol

-35℃ - +120℃

The working temperature

-5℃ - +40℃

The maximum elevation

1000m

The maximum morking pressure

10bar
