TDC Flange Forming Machine

FOB Price:

Open price

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

Payment Terms:

L/C, T/T

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

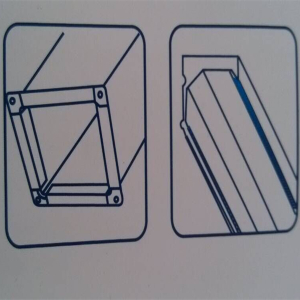

TDC unit is one of the two universal flange making systems in the world. It can save time and material drastically with its wel-seal, strong and durable joint structure. So it is specially suitable for producing a duct with a large sectional area.

Today many famous buildings in the world utilize this kind of structure in the ventilation system such as the American Kennedy Space Center, Guangzhou CITIC Plaza etc. The unit consists of a feeding frame, main forming machine and a shearing unit, which includes grinder and hydraulic shearing unit.

The hydraulic shearing unit makes fixed cutting available with very little burr, and may be operated automatically with a maximum work speed of 6 m/min. It is divided into four types: T-20\T-30\T-35\T-40 with their corresponding duct corner T-20DC\T-30DC and T-40DC. TDC made by SBKJ may match and produce all the ducts in the DW144 standard, and has passed the HVAC PW/TMI(1987) pressure test, which is a speciality test for the intensity and sealed condition of a duct.

Type	Rolls Shape	Edge wide	Capacity	Motor	Weight	Dimension
SBTDC-20A		88mm	0.8mm	3kw	2000kg	2800× 600× 1150mm
SBTDC-30A		120mm	1.0mm	3kw	2200kg	3000× 600× 1150mm
SBTDC-35A		131mm	1.0mm	3kw	3000kg	3200× 600× 1200mm
SBTDC-40A		141mm	1.2mm	4kw	3000kg	3200× 600× 1200mm

Type	Rolls Shape	Edge wide	Capacity	Motor	Weight	Dimension
SBTDC-20B		86.5mm	0.8mm	3kw	2000kg	2800× 600× 1150mm
SBTDC-30B		118mm	1.0mm	3kw	2200kg	3000× 600× 1150mm
SBTDC-40B		136mm	1.2mm	4kw	3000kg	3200× 600× 1200mm

Type	Name	Capacity	Size	Shape
T-20DC	Duct comer	2.5mm	a=95mm
T-30DC	Duct comer	3mm	a=105mm
T-40DC	Duct comer	3.5mm	a=123mm
LT-30	Duct comer	3mm	a=105mm
T-35DC	Duct comer	3mm	a=106mm
BC-10	Duct clip	5mm
