Brass Model CV Check Valve With Direct Flow and Right angle Type

FOB Price:

US 8-10 / Piece

Min.Order Quantity:

200 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Week

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Hongsen

Products Model:

CV Check Valve

Products Details
Company Profile

Quick Details

Brand Name: Hongsen

Model Number: CV Check Valve

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Hongsen packing or Neutral packing
Delivery Detail: 15~30 Days

Specifications

Product Description:

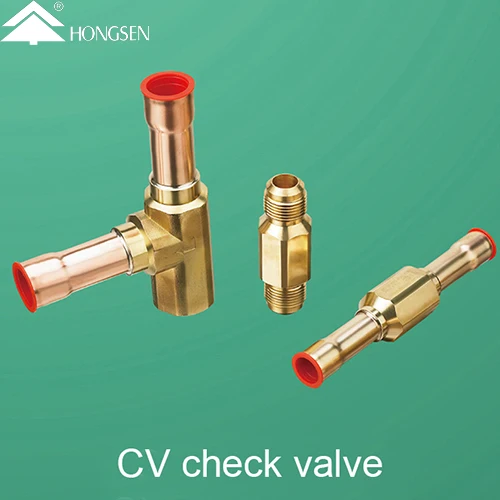

·Model CV check valve is used on the piping of liquid, suction gas or hot air on the freezing, cold storage and air conditioner units.

·The valve seat and seals of Model CV check valve have excellent sealing performance.

·For Model CV check valve, both threaded and welded connections are available.

Product Model:

Model	Type	Spec		I.D.(mm)	Kv(m³/h)
Model	Type	Flare	Welded	I.D.(mm)	Kv(m³/h)
CV-6	Direct Flow	1/4 SAE	1/4 ODF	4.8	0.56
CV-10		3/8 SAE	3/8 ODF	8	1.43
CV-12		1/2 SAE	1/2 ODF	10	2.05
CV-16		5/8 SAE	5/8 ODF	13	3.60
CV-19		3/4 SAE	3/4 ODF	16	5.50
CVR-22	Right Angle	——	7/8 ODF	19	8.50
CVR-28		——	1-1/8 ODF	25	19.0
CVR-35		——	1-3/8 ODF	32	29.0

1) Kv value: When the pressure differential is 100KPa, the flowrate at m³/h water in density 1 t/m³ flows through the solenoid valve.

Technical Parameters:

Applicable Refrigerant:	HCFC,HFC
Applicable Medium Temperature:	-40℃~+120℃
Maxmum Working Pressure	3.0MPa
Maximum Test Pressure	4.5MPa
Minimum Opening Pressure Differential	P=0.03MPa

Features:

Ensure one flow direction and avoid reversal;

With the built-in damper and could be mounted on the piping with pressure pulsation;

Prevent refrigerant back flow from high temperature evaporator to low temperature evaporator;

Applicable to the refrigeration unit in parallel with compressor;

Both direct flow type and right-angle type are available.

Zhejiang Hongsen Machinery Co.Lit is a company with more than 20 years' devote experience. Hongsen Machinery invests more in the technical upgrading and introduces advanced technology.

Now, Hongsen Machinery products enjoy good quality as similar as international leading level and the products sell well both at home and abroad including some leading OEMs.

Hongsen welcome you!

Hongsen Machinery covers a land area of 5000 square meters. There are over 300 staffs and workers including a specialty team of ten techicians. Hongsen Machinery has a close cooperation with the processors and experts in zhejiang university. Shanghai jiao tong university and tianjin university and several senior engineers of leading domestic OEMs are invited as the consultants of the company. A number of technical talents are trained in production,development and quality control and grow up in the company. At present,Hongsen Machinery is capable to manufacture multiple categories of refrigeration and A/C accessory parts such as solenoid valve series, ball valve series, sight glass series, expansion valve series and shut off valve series. Hongsen Machinery becomes one company intergrating R&D, production,and marketing into one.
