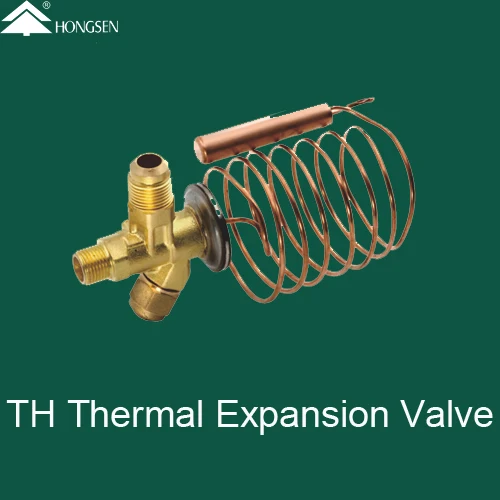

TH404 Thermal Expansion Valve for R404

· T-type expansion value is a novel thermostatic expansion value with replaceable valve element

· T-type expansion value is used for adjusting the supply quantity of liquid refrigerant in evaporator

· T-type expansion value is particularly suitable for supplying liquid refrigerant in dry-type evaporator

· T-type expansion value has autocontrol through regulating the-superheating degree of refrigerant.

Technical Parameters:

Features:

• Large scope of evaporating temperature;
• Be capable of providing MOP function so as not to damage the compressor motor due to overhigh evaporating pressure;
• Have two forms of internal and external balance, be capable of removing influence brought by loss of evaporator pressure effectively;
• Have the membrane structure with invention patent, greatly improve the working performance at low temperature;
• Valve bonnet adopts a secondary sealing structure to ensure zero external leakage;
• Replaceable valve element component with 100-mesh filter has convenient storage, matching and maintenance;
• The temperature wrap has mixed charging technology so as to have the feature of superheating degree within the whole evaporating temperature scope.
