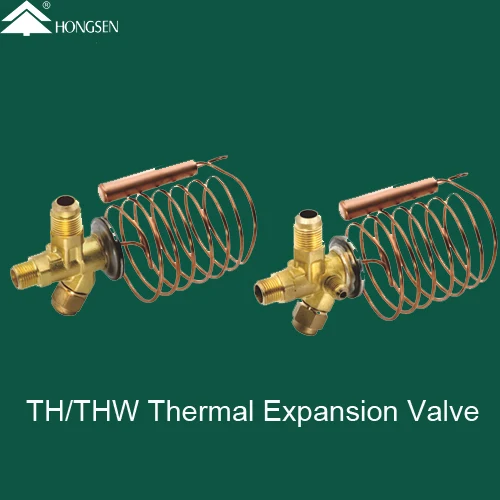

TH THW Thermal Expansion Valve with Replaceable Valve Element

FOB Price:

Get Latest Price

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

100000 Piece/Pieces per Year

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Hongsen

Products Model:

TH/THW Thermal Expansion Valve

Products Details
Company Profile

Quick Details

Brand Name: Hongsen

Model Number: TH/THW Thermal Expansion Valve

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Hongsen packing or Neutral packing
Delivery Detail: 15~30 Days

Specifications

Product Description:

· T-type expansion value is a novel thermostatic expansion value with replaceable valve element

· T-type expansion value is used for adjusting the supply quantity of liquid refrigerant in evaporator

· T-type expansion value is particularly suitable for supplying liquid refrigerant in dry-type evaporator

· T-type expansion value has autocontrol through regulating the-superheating degree of refrigerant.

Product Model:

Replaceable element model:

Valve element No.	Nominal refrigerating capacity(TR)			Nominal refrigerating capacity(KW)
Valve element No.	R22	R134a	R404A	R22	R134a	R404A
No.1	0.7	0.5	0.45	2.5	1.8	1.6
No.2	1.0	0.8	0.6	3.5	2.6	2.1
No.3	1.5	1.3	1.2	5.2	4.6	4.2
No.4	2.3	1.9	1.7	8.0	6.7	6.0
No.5	3.0	2.5	2.2	10.5	8.6	7.7
No.6	4.5	3.0	2.6	15.5	10.5	9.1

· The valve element can be exchanged with the valve element of Danfoss in corresponding number and can’t exchange with other valve elements of other plants.

Model of main value body:

Refrigerant	Model	Pressure Balance	Thread			Nominal Refrigerating Capacity
			Intet	Outlet	Outside Balance End	TR	KW
R22	TH22	Internal balance	3/8 SAE	1/2 SAE		0.7~4.5	2.5~15.5
	TH22W	External balance			1/4 SAE
R134a	TH134	Internal balance				0.5~3.0	1.8~10.5
	TH134W	External balance			1/4 SAE
R404A	TH404	Internal balance				0.45~2.6	1.6~9.1
	TH404W	External balance			1/4 SAE

·The working condition of nominal refrigerating capacity is; evaporating temperature 5℃; condensing temperature 35℃; superheating degree 3.5℃; superheating degree 4℃
·other refrigerants can be customized based on client’s requirements

Technical Parameters:

Applicable Refrigerants:	R22,R134a,R404A
Applicable Medium	R22: -40℃~+10℃; R134a:-30℃~+10℃;R404A:-40℃~+10℃
Norminal Capacity:	2.5KW~15.5KW,1.8KW~10.5KW,1.6KW~9.1KW
Adjustable Range of Superheat:	2℃~8℃
Ex-Works Static Heat Adjustment:	3.5℃
Maximum Working Pressure:	2.0MPa
Maximum Testing Pressure:	3.0MPa

· Capillary length of T-type thermostatic expansion valve:1.5m in atandard; under special situation,it can be customized based on clients' requirements.

Features:

Large scope of evaporating temperature;
Be capable of providing MOP function so as not to damage the compressor motor due to overhigh evaporating pressure;
Have two forms of internal and external balance, be capable of removing influence brought by loss of evaporator pressure effectively;
Have the membrane structure with invention patent, greatly improve the working performance at low temperature;
Valve bonnet adopts a secondary sealing structure to ensure zero external leakage;
Replaceable valve element component with 100-mesh filter has convenient storage, matching and maintenance;
The temperature wrap has mixed charging technology so as to have the feature of superheating degree within the whole evaporating temperature scope.

Zhejiang Hongsen Machinery Co.Lit is a company with more than 20 years' devote experience. Hongsen Machinery invests more in the technical upgrading and introduces advanced technology.

Now, Hongsen Machinery products enjoy good quality as similar as international leading level and the products sell well both at home and abroad including some leading OEMs.

Hongsen welcome you!

Hongsen Machinery covers a land area of 5000 square meters. There are over 300 staffs and workers including a specialty team of ten techicians. Hongsen Machinery has a close cooperation with the processors and experts in zhejiang university. Shanghai jiao tong university and tianjin university and several senior engineers of leading domestic OEMs are invited as the consultants of the company. A number of technical talents are trained in production,development and quality control and grow up in the company. At present,Hongsen Machinery is capable to manufacture multiple categories of refrigeration and A/C accessory parts such as solenoid valve series, ball valve series, sight glass series, expansion valve series and shut off valve series. Hongsen Machinery becomes one company intergrating R&D, production,and marketing into one.
