Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;

Operating temperature range: -55ºC ~ 150ºC;

Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA

Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;

Small temperature drift between operating point and release point;

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements

Outline

When the N pole of magnet faces the mark surface of the sensor and is closed to sensor(|B|≥|Bop|),the sensor outputs low level; When the N pole faces the mark surface and is closed to sensor (|B|≥|Brp|),the sensor outputs high level. When the magnet is far away from the sensor (B=0), the output status of the sensor is latched and remains constant. In order to change the output status, the applied magnetic field must be opposite polarity. The magnet and electric transfer characteristic curve of AH3041N is shown as the figure:

Simply, the polarity of the operating magnetic field of AH3041N is opposite with normal Hall sensor.

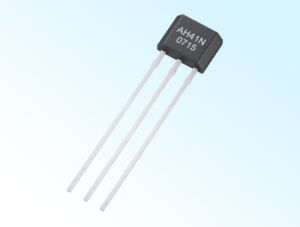

Hall sensor AH3041N is one of bipolar excitation single-ended digital output Hall IC. The output signal owns latch function. The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger, and open collector output driver circuit unit. Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.

Limit Parameter

Parameter	Symbol	Min.	Max.	Unit
Storage Temp.	Ts	-55	175	ºC
Supply Voltage	V_CC	3.5	28	V
Output Cut-off Voltage	V_O(off)	-	25	V
Magnetic Induction	B	unlimited	unlimited	mT
Output Current	I_O	-	50	mA

Electrostatic Grade

Under human being mode, the Electrostatic compression is large than ±6kV.

Operating Condition

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage	V_CC	4.5	24	V
Operating Temp.	Ta	-55	150	ºC
Output Current	I_O	-	8	mA

Electrical Characteristic
