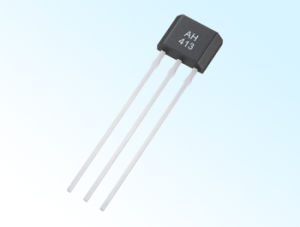

China Hall Effect Sensor AH413 Bipolar Sensor

FOB Price:

Open price

Min.Order Quantity:

1000 Pieces

Supply Ability:

100000000 Pieces per Year

Port:

Shanghai, China

Place of Origin:

China

Payment Terms:

T/T, Paypal

Brand:

AHNJ

Products Model:

AH413

Products Details
Company Profile

Quick Details

Brand Name: AHNJ

Model Number: AH413

Place of Origin: China

Specifications

Features

Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;
Operating temperature range: -55ºC ~ 150ºC;
Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA
Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;
Small temperature drift between operating point and release point;
No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;
Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements

Outline

When the S pole of magnet faces the mark surface of the sensor and is closed to sensor(B≥Bop), the sensor outputs low level; When the N pole faces the mark surface and is closed to sensor (B≤Brp),the sensor outputs high level. When the magnet if far away with the sensor (B=0), the output status of the sensor is latched and keep constant. In order to change the output status, the applied magnetic field must be opposite polarity.
AH413 Hall sensor is one of bipolar excitation single-ended digital output Hall IC. The output signal owns latch function. The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open collector output drives circuit unit. Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.
Limit Parameter

Parameter	Symbol	Min.	Max.	Unit
Storage Temp.	Ts	-55	175	ºC
Supply Voltage	VCC	3.5	28	V
Output Cut-off Voltage	VO(off)	-	25	V
Magnetic Induction	B	unlimited	unlimited	mT
Output Current	IO	-	50	mA

Operating Condition

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	4.5	24	V
Operating Temp.	Ta	-55	150	ºC
Output Current	IO	-	8	mA

Electrical Characteristic
Parameter	Symbol	Test Condition	Typ. Max.	Max.	Unit
Output Low level	VOL	VCC1=4.5, VCC2=24V, IO=25mA,B≥BOP	0.2	0.4	V
Output High Level	VOH	VCC1=4.5, VCC2=24V, IO=25mA,B≤BRP	23.5	24	V
Output Leakage Current	IOH	VCC2=24V,VCC1 Open circuit	0.1	10	μA
Supply Current	ICC	VCC1=24V,Vo Open circuit	3.5	8	mA
Output Rise edge Time	tR	VCC1=VCC2=12V, RL=1.2kΩ, CL=20pF	125	150	μs
Output Fall Edge Time	tF		60	80	μs

Magnetic Characteristic
Test condition:VCC1 = VCC2 =24V,IO = 50mA

Parameter	Simbol	Min.	Typ.	Max.
Operate Point	BOP	-	4	7
Release Point	BRP	-7	-4	-
Hysteresis ∣Operate point -Release Point∣	BH ∣BOP-BRP∣	4	8	14

Note 1: Unit : mt, 1mt=10Gs
