Industrial Air Cooler Unit Cooler Low Temp 7 14 Fin spacing

FOB Price:

US 1000-5000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

CRYOTEK

Products Model:

CIS502F10-633H10

Products Details
Company Profile

Quick Details

Brand Name: CRYOTEK

Model Number: CIS502F10-633H10

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: In BOX case for Industrial Air Cooler, safe and free of fumigation.
Delivery Detail: Shipped in 25 days after payment

Specifications

CIS Industrial Air Cooler Medium/Low Temp.

Product Description

Product Features

1. High efficiency staggered fin pattern design;

2. Optimized Sine waved fin for high performance;

3. Internal grooved tube for higher heat exchanger efficiency;

4. Optimized circuiting for better evaporation;

5. Optimized air flow to reach max. Capacity;

6. Robust, state-of-the-art sheet metal design;

7. Casing with white coating for corrosion protection;

8. Dual drip tray design to avoid water condensation;

9. Fin spacing optional for specific application;

10. Dual fin spacing design is available for min. frost;

11. Tailor made unit cooler is available for special application;

12. Specific fan motor for low temp. Application, higher air flow, higher air throw;

13. Optional defrost available (Electric, water & hot gas defrost);

14. Imported brand e-heaters applied for defrost;

15. Distributor support design to avoid unexpected vibration;

16. Special "Floating Tube" design for large unit cooler;

17. SS or AI casing is available for certain models;

18. Air jet for longer air throw is available for certain models;

19. Available for CO2-DX unit cooler up to 40 Bar;

20. Provide customized brine air cooler.

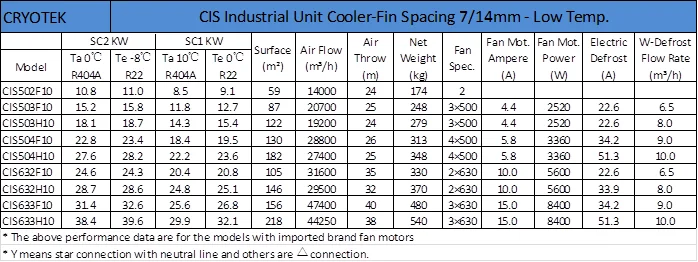

Technical Specificat

*Capacity is based upon standard EN328 as follows:

Operating mode	SC1	SC2	SC3	SC4	SC5
Evap. temperature	0 ºC	-8ºC	-25ºC	-31ºC	-40ºC
TD(Ta-Te)	10K	8K	7K	6K	6K
AIR inlet temp.	10ºC	0ºC	-18ºC	-25ºC	-34ºC
Superheat	6.5K	5.2K	4.6K	3.9K	3.9K
RH	85%	85%	95%	95%	95%

*The performance data have deviation when different fan models applied and exact data shown on the data plate.

*Air throw is for reference purpose only. The actual air throw will be affected by the arrangement of the air unit coolers or the placement of the goods.
