Home > Products > Electric Power Distribution System > Generator Set

CE ISO APPROVED 10 500kW generator turbine

CE ISO APPROVED 10 500kW generator turbine

Price:

US 8000-20000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Naipute

Products Model:

100GFT generator turbine

Products Details
Company Profile

Quick Details

Brand Name: Naipute

Model Number: 100GFT generator turbine

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: 100kw generator turbine sea worthy package;special package as your requirement
Delivery Detail: 25days against 30% deposit received

Specifications

CE/ISO APPROVED 10-500kW generator turbine

Product Description

1.20 years' experience
2.Competitive price
3.Low consumption
4.Testing at least 4 hours

5.Customerization

100 kW generator turbine

400kW generator turbine

260kW generator turbine

500kW biomass generator turbine

100kW Biomass generator turbine

125kW 2 units in parallel biomass generator turbine

LPG generator turbine

150kW LPG generator turbine

Power plant

Generating set general Model		100GFT
Structure		integral
Exciting method		AVR Brushless
Rated Power (kVA/kW)		125/100
Rated Current(A)		180
Rated Voltage(V)		400/230
Rated Frequency(Hz)		50
Rated Power Factor		0.8 LAG
Overall dimension (L x W x H)(mm)		2850X1100X1800
Net weight (kg)		2100
Gas Engine	Model	NW116D12
	Type	V type 4 stroke, electric control ignition, pre-mixed stoichiometry burn
	Cylinder number	6
	Bore x Stroke (mm)	126X155
	Total displacement (L)	11.6
	Rated Power (kW)	120
	Rated Speed (r/min)	1500
	Fuel Type	10-500kW gas engine
Control panel	NPT Brand100KZY	LCD display
	Circuit Breaker type	ATS/SKT1-250
	Control module	Smartgen HGM6320
	Operation language	English
Alternator	Model	XN274D
	Brand	MBH( Germany)
	Shaft	Single bearing
	Rated Power (kW)	100
	Rating(kVA)	125
	Enclosure protection	IP23
	Efficiency (%)	90.3

Packaging & Shipping

10-500kW generator turbine packing

Our Services

10-500kW generator turbine service

Weifang Naipute Gas Genset CO.,Ltd is a professional manufacturer of gas generator set, in order to enhance management and guarantee quality, we go strictly with ISO 9001 and all our products technology index can qualify CE certification. Our service concept will be” efficiency ,reliability, credibility, consideration”. Our service includes: proper gas generator option, installation &debugging, train operator, technical service &spare parts during gas generator life time.

Pre-sale service

Provide specification parameter and consultants service, customized design optional.

According the requirement of customer we will design and offer a complete set of equipment, such as mute device and heat treatment device and so on.

After –sale service

Installation guide and maintenance manual

Guide user to install the machine and free debugging machine for free.

Training the operator for the user, cooperate with the user finish the acceptance work.

Tracking service

Regularly consult feedback from end user ,avoid potential problem and solve problem in time.

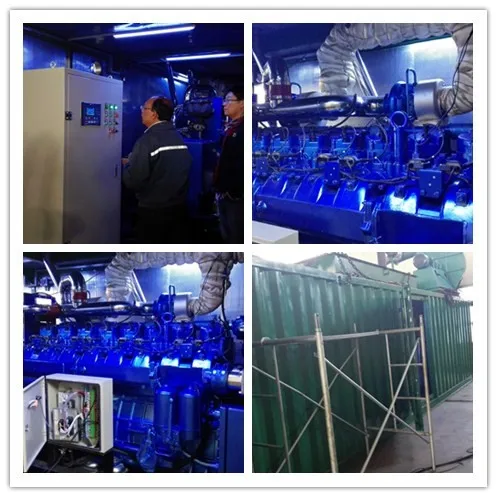

Application power plant
