Ultra low noise Roof Ventilator of Glass Fiber Reinforced plastics

Ultra low noise Roof Ventilator of Glass Fiber Reinforced plastics

Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

Shanghai,Shenzhen

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

HongYang

Products Model:

HY-BDW-87-3-0004

Products Details
Company Profile

Quick Details

Brand Name: HongYang

Model Number: HY-BDW-87-3-0004

Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing
Delivery Detail: 10-20 working days after payment

Specifications

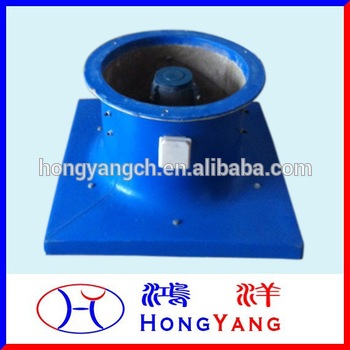

Ultra-low noise Roof Ventilator of Glass Fiber Reinforced plastics

Model: HY-BDW-87-3 Series

Summary

It is made of glass fiber reinforced plastics of high quality. It has features of low noise, corrosion-proof, high efficiency, light weight, compact structure and easy to install, etc. It can be widely used in hotels, restaurants, schools, hospitals, conference halls and cinemas etc.

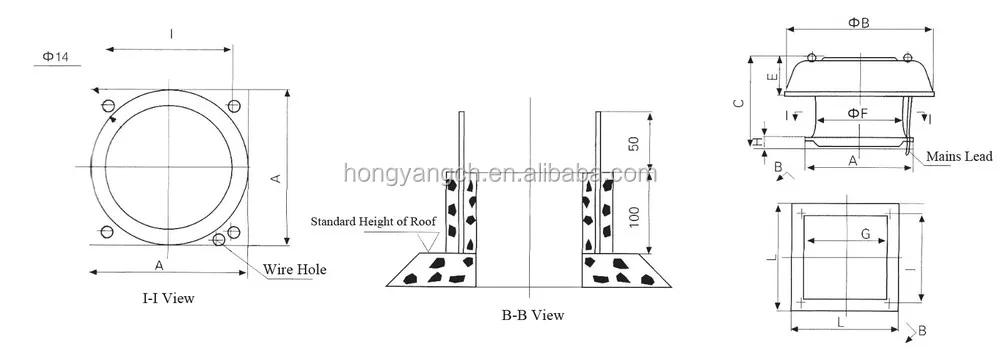

Performance parameter and Dimension

Machine No	Impeller (φmm)	Revolving Speed (r/min)	Air volume under different static pressure (m³/h)			Installation dimension										Weight (Kg)
Machine No	Impeller (φmm)	Revolving Speed (r/min)	5mm H²O	10mm H²O	15mm H²O	A	B	C	D	E	F	G	H	L	I	Weight (Kg)
2.5	250	1450	0.06	927	740	49	585	493	325	175	270	50	345	565	455	10
3	300	1450	0.09	1784	1120	50	585	493	390	175	320	50	345	565	455	15
