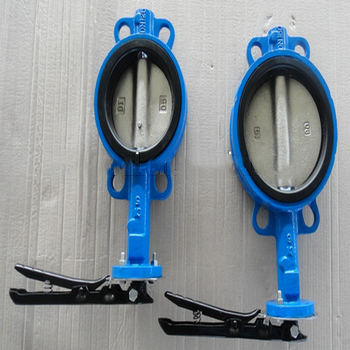

Series F401 valves designed to comply with BS5155. Compatible with GB, DIN, BS and ANSI125/150 flanges. Face to face according to ISO 5752 basic series 13 (short)/DIN 3202 part 1 series F16. Characteristic of series F401 valve is to splice the rubber liner on the body, the strength more highly and the seal more reliably for the seat. There is O-ring casted on the seal surface of the seat, negates need for flange gaskets. Available in size 2″ to 48″. Available with handles, manual gear operators, and electric or pneumatic actuators.
Item |
Part Name |
Materials |
1 |
Stem |
Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416; |
2 |
Body |
Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; |
3 |
Disc |
Ductile Cast Iron(Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400; |
4 |
Seat |
NBR, EPDM, Neoprene, PTFE, Viton; |
5 |
End Cap |
Cast Iron: ASTM A126CL. B ,DIN1691 GG25, EN 1561 EN-GJL-200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, |
6 |
Bolt |
Zinc Plated Steel; |
7 |
Taper Pin |
Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501; |
8 |
O-Ring |
NBR, EPDM, Neoprene, Viton; |
9 |
Bushing |
PTFE, Lubricated Bronze; |
10 |
Key |
Carbon Steel |
Packaged in wooden cases
shipping about 45 days by sea or train
We are a professional manufacturer and supplier of valves,pipes and fittings which are widely used for water ,oil and gas pipe lines.
We have been supplying the valves and fittings to Europe,Asia,Middle East Countries and Amercian markets for 15 years.Our factory has obtained ISO9001,CE0035 and API approval certificates for our valves and fittings made of Iron,steel and Copper alloy with design to DIN,BS,ANSI,JIS standard.
We can also manufacture valves and fittings according to client's design.
For more information,please visit our website:www.ahsunval.com
