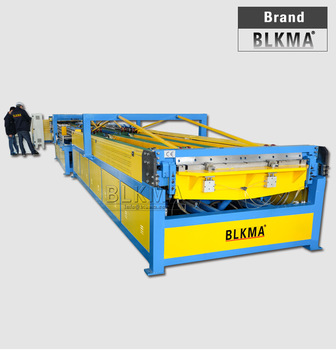

1.2 mm cnc square HVAC duct manufacture auto production line 5

1.2 mm cnc square HVAC duct manufacture auto production line 5

Performance Features:

1. The linear structure of machine makes processing smoothly and occupies a small space.

2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.

4. The locating system is very accurate with servo feeding mechanism, especially when

processing square-shaped pipes.

5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep

operation stable.

6. It requires at least one person to operate and each shift can output 600-2000.

7. With production memory funtions, the production orders can be tracked and checked.

Function:

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of

600-2000 square meters. Only with inputting dimensions in duct, production line can automatically

complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel /

C-shaped flange and folding.

Main Imported Configuration:

Basic Configuration:

Working Schematic Diagram & Working Flow:

Main Technical Parameters:

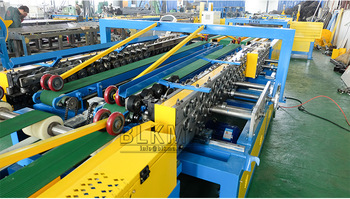

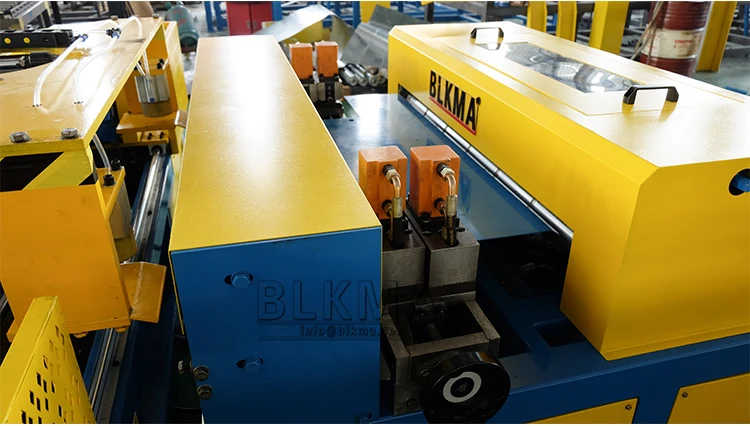

Detailed Images:

FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

 2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.

 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.

 4. OEM is available?

    Yes.
