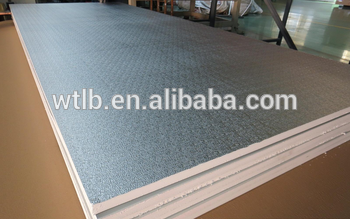

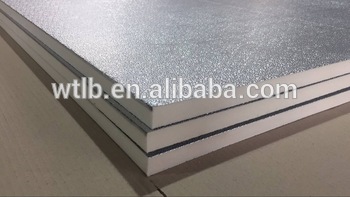

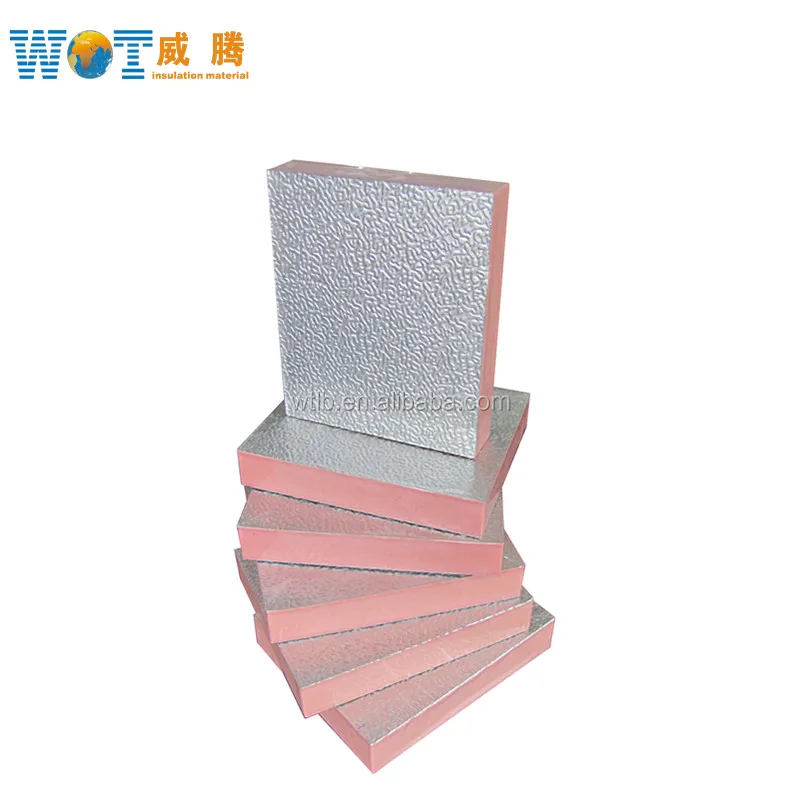

W.T Phenolic Foam Pre-insulated Ducting Panel with high strength, which takes phenolic foam as the core material with reinforcing the aluminum foil on both sides.

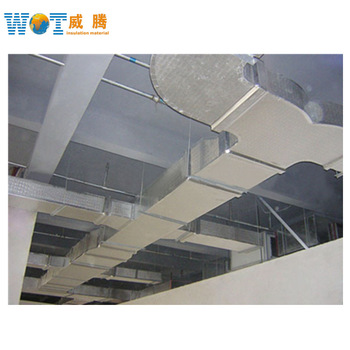

It’s widely used for the ventilation systems of central air conditioning units in hotels, apartments, hospitals, Supermarket, workshop office buildings and other deluxe buildings.
Technical Data Sheet of Phenolic foam
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 45-70 kg/m3 |
| Aluminum foil thickness | 0.06/0.08mm/0.15mm |
| Thermal Conductivity | 0.02-0.024W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.25% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 120 ℃ |
Accessories Tools
W.T Phenolic Foam Pre-insulated Air Conditioning Duct Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
W.T Thermal Insulation Material Co., Ltd is a professional manufacturer of Pre-insulated HVAC duct System and other thermal insulation materials, such as Polyurethane (PU) / PIR / Phenolic Foam Pre-insulated HVAC duct, Phenolic Foam Insulation Board, Pre-insulated Polyurethane Foam Duct Panel.
