galvanized iron GI board phenolic board

Price:

US 3-4.5 / Square

Min.Order Quantity:

1000 Square Meter/Square Meters

Supply Ability:

per

Port:

shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: plastic film and carton
Delivery Detail: --

Specifications

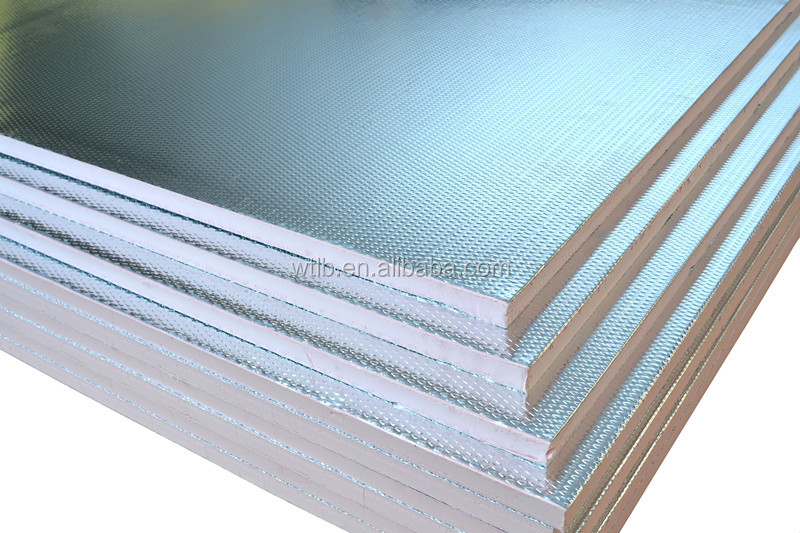

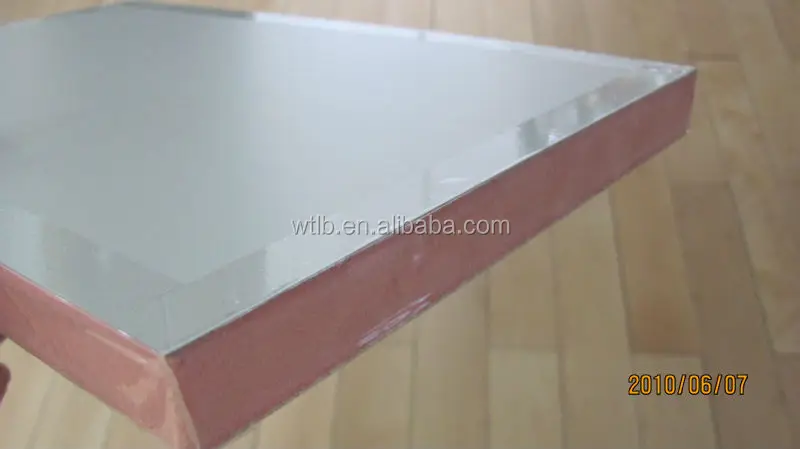

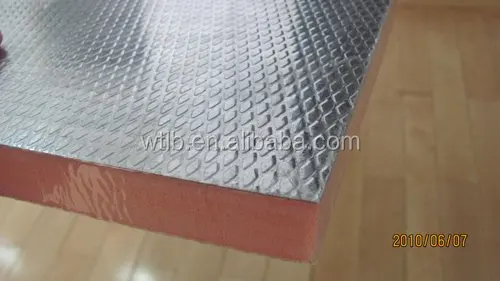

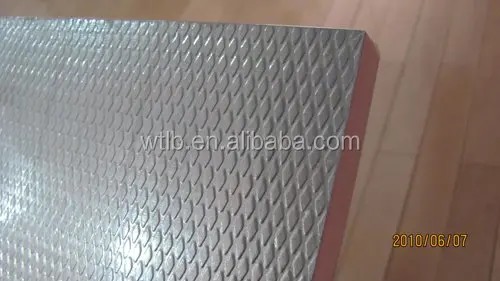

phenolic board with galvanized iron and aluminum:

1)One side foil+one side GI/colored steel+phenolic board
Anti-corrosion coating embossed foil+galvanized steel/colored steel+phenolic foam

2)two sides GI/colored steel+phenolic foam board

Technical Data Sheet of Phenolic Foam Panel with GI/Colored Steel
ITEM	UNIT	SPECIFICATION
Density	kg/m3	60-65 kg/m3
Aluminum thickness	mm	0.08
Steel thickness	mm	0.2
Total thickness	mm	20
Dimension	mm	3000(4000)120020
Temperature range	centigrade	-180 to 150
Thermal conductivity	w/m.k	0.020-0.037
Firproofing performance	~	Glass 1 (BS 476 part 6&7)
Oxygen index	%	36-43
Grade of smoke density	~	4 SDR
Water vapor transmission	g/(m2.24h)	<1
Compression strength	Mpa	0.24
Flexural strength	Mpa	1
Air leakage	%	<2
Material water absorption rate	%	<1.5
Mechanical loss rate	~	0.01
Recycle rate	%	60-80
life time	years	20-30

We also have phenolic foam with aluminum foil and color steel phenolic foam types.

HVAC air duct heat insulation panel/ Pre-insulated air ducting panel:

Core Material: Phenolic foam/polystyrene(XPS)/polyurethane(PU)/polyisocyanurate(PIR)
Size: 3000(4000)*1200*20mm

Products:

phenolic foam with colored steel.jpg
