air ducting XPS polystyrene foam

Price:

US 3-4 / Square

Min.Order Quantity:

1000 Square Meter/Square Meters

Supply Ability:

per

Port:

shagnhai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: 10SHEET/PACKAGE AIRBUBBLE
Delivery Detail: --

Specifications

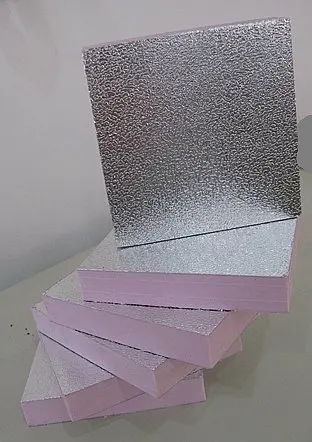

Extruded Polystyrene Insulation Sheet/Xps Board
Item No.: WT2-2A
Material: Double side aluminum foil+Polystyrene(XPS)Foam
Thickness of aluminum foil: 40um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter)

Item No.: WT2-2B
Material: Double side aluminum foil+FR Polystyrene(XPS) Foam
Thickness of aluminum foil: 40um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter)

Technical Data Sheet of Polystyrene(XPS) Foam Insulation Panel
ITEM	UNIT	SPECIFICATION
Density	Kg/m3	40~45
Thermal conductivity, 90 days, 10°C	W/mK	0.027~0.03
Compressive strength	kPa	≥300
Flexural Strength	Mpa	1.06
Tensile strength	kPa	≥300
Water absorption rate	%	≤ 1.00
Water vapor permeance	Ng/(m.s.pa)	≤3
Dimension Change Rate	%	≤ 2
combustion performance	~	Flame Retardancy B1
Temperature limits	°C	-50 to 75°C
Standard Size	mm	3000120020

AL-EPS Board.jpg

SAM_0230 SAM_0227
