Home > Products > Materials > Insulation Material

phenolic foam pre-insulated duct

Price:

US 3-4 / Square

Min.Order Quantity:

3000 Square Meter/Square Meters

Supply Ability:

per

Port:

shanghai

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Packaging & Delivery

Packaging Details: 10 sheets/package airbubble film
Delivery Detail: --

Specifications

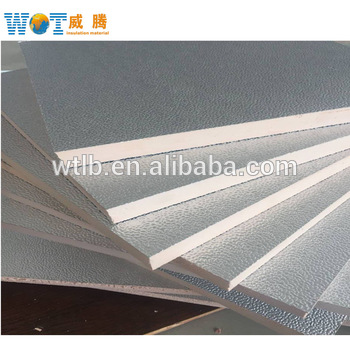

phenolic foam air duct panel:

Phenolic panel.jpg

Phenolic Foam Air Duct Panel
Item No.: WT2-3A
Material: Double side aluminum foil+Phenolic Foam Air Duct
Thickness of aluminum foil: 80um
Total thickness: 20mm
Size: 1.2m(w)x4m(L)
MOQ: 210sheets(1008 square meter)

Item No.: WT2-3B
Material: Aluminum foil+Phenolic Foam Air Duct+steel sheet
Thickness of aluminum foil: 80um
Thickness of Steel: 200um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter)

Item No.: WT2-3C
Material: Double side steel sheet+Phenolic Foam Air Duct
Thickness of Steel: 200um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter)

Its widely used in insulation workshops, cleaning rooms, high class buildings, composite cold storages, containers, etc.

ITEM	UNIT	SPECIFICATION
Density	kg/m3	50-65
Double side Aluminum thickness	mm	0.035-0.08-0.03
Total thickness	mm	20
Thermal Conductivity	w/m.k	0.02
Flexural Strength	Mpa	1
combustion property	~	Non-combustible Class A
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature		-250 to150
Standard Size	mm	3000(4000)120020
