Air Conditioning duct board

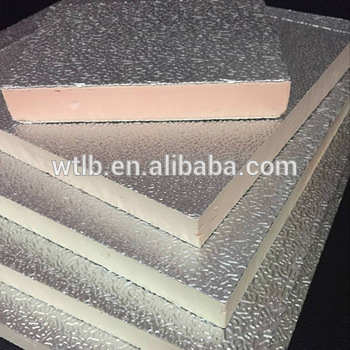

HVAC air duct heat insulation panel/ Pre-insulated air ducting panel:

Material: phenolic/polystyrene(XPS)/polyurethane(PU)/polyisocyanurate(PIR)

Size:3000(4000)*1200*20mm

XPS duct panel

Size:1200mm*3000/4000mm*20mm
Material:Front and back: 40 microns embossed aluminum foil
             Core material: extruded polystyrene

fireproofing

Phenolic duct panel

Model1:Phenolic foam air duct panel

Size:1200mm(W)*3000/4000mm(L)*20mm (H)
Material:Front and back: 80 microns anti-corrosion coating embossed aluminum foil
             Core material: phenolic foam

fireproofing

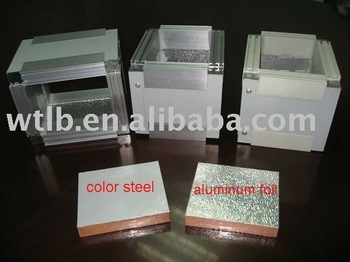

Model2:Phenolic foam air duct panel with colored steel

Size: 3000(4000)*1200*20mm
Front: Anti corrosion embossed foil: 80 microns
Back: 200microns colored steel
Core material: Rigid phenolic foam
(Class0) BS 467 part6&7

Model3:phenolic board with galvanized iron and aluminum

Size: 3000(4000)*1200*20mm
Front: Anti corrosion embossed foil: 80 microns
Back: 200microns ga;vamozed steel
Core material: Rigid phenolic foam
(Class0) BS 467 part6&7

PU/PIR air duct panel

Our PIR board have three types: PIR foam board(board backed two sides alu foil), PIR galvanized iron board(board backed one side galvanized iron), PIR color steel board(board backed one side color steel)

Thickness of PIR board: 20/ 25/ 30/ 35/ 40/ 50mm

Model1:PIR foam board

Coating: Two sieds backed embossed alu foil, thickness 0.08mm
Core material: PIR foam

Size: 4000mm*1200mm*20mm

Unit weight: 1.4kg/m2

Model2:PIR galvanized iron air duct panel

Coating: One side backed embossed alu foil, thickness 0.08mm
The other side iron steel, thickness0.22mm

Core material: PIR foam

Size: 4000mm*1200mm*20mm

Unit weight: 2.9kg/m2

Model3:PIR color steel air duct panel

Coating: One side backed embossed alu foil, thickness 0.08mm
The other side color steel, thickness0.22mm

Core material: PIR foam

Size: 4000mm*1200mm*20mm

Unit weight: 2.9kg/m2
