Single Side Color Steel Phenolic Compound Insulation Board for Air Duct

Single Side Color Steel Phenolic Compound Insulation Board for Air Duct

Price:

US 1-10 / Piece

Min.Order Quantity:

1000 Pieces

Supply Ability:

5000square Meter per Day

Port:

Shanghai, China

Place of Origin:

Wuxi, China

Payment Terms:

L/C, T/T, Western Union, Paypal, Money Gram

Brand:

WELLWALL

Products Model:

WW-W1-DC

Products Details
Company Profile

Quick Details

Brand Name: WELLWALL

Model Number: WW-W1-DC

Place of Origin: Wuxi, China

Specifications

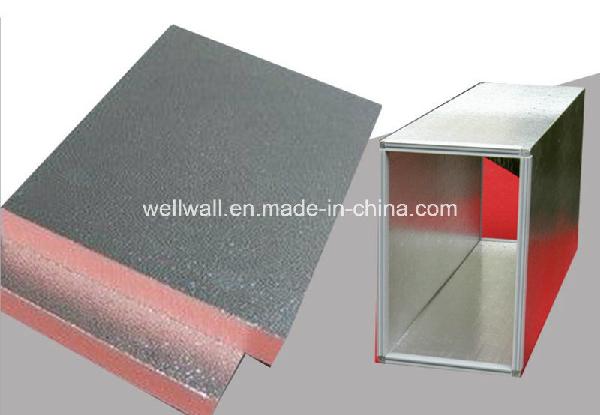

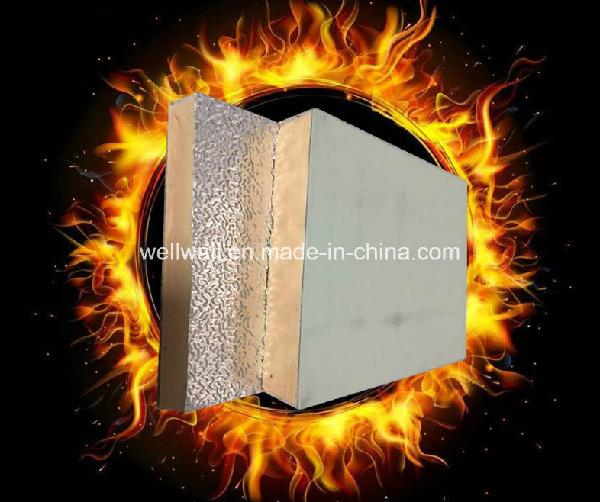

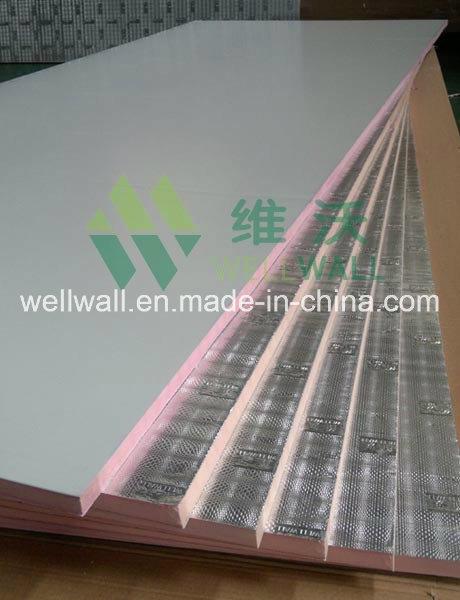

Single sided color steel phenolic compound insulation board (WW-W1-DC) is an upgrade product of double aluminum foil phenolic compound insulation board. Its structure is: the sandwich layer uses phenolic foam, one side uses anticorrosive embossing aluminum foil, one side uses anticorrosive and antirust color steel plate, color steel surface can be pressed into diamond pattern, and wood grain can be customized according to requirements. A variety of colors, such as marbles, camouflage and brick.
Product specification: long (900MM to 6000MM) * wide 1200MM* thick (10MM-130MM).
According to the requirements of customers, we can customize plates of various lengths and thickness.

Technical indexes:

Number	Inspection items	Technology index	Measured value	Test method
1	Density	>=50kg/m3	61.7 kg/m3	GB/T 6343-2009
2	Coefficient of thermal conductivity	<=0.035W/(M·K) (average temperature is 25ºC)	0.026 W/(M·K)	GB/T 10294-2008
3	180 ° peel strength	>=0.15N/mm	0.70N/mm	GB/T 2790-1995
4	Compression strength	>=0.15Mpa	0.16Mpa	GB/T 8813-2008
5	Bending strength	>=1.1Mpa	1.2Mpa	GB/T 8812-2007
6	Dimension stability	<=2% (70±2ºC,48h)	0.5%	GB/T 8811-2008
7	Combustion performance	>=B level	A2	GB8624-2012
8	Formaldehyde Emission	<=1.5Mg/L	1.3Mg/L	GB 18580-2001
9	Pressure in duct max, Leakage air volume,stress and deformation	±1500Pa	1500Pa	GB50243-2002 JGJ141-2004

Jiangyin Wellwall Insulation Materials Co., Ltd. is an independent innovative enterprise integrating R&D, manufacturing, sales and engineering services. The company has been focusing on the production of phenolic foam sheets and composite products, and has 12 years of production experience. The company is located in Jiangyin City, Jiangsu Province, 2 hours drive from Shanghai, with a very convenient transportation advantage.

The company occupies 40 acres and has 120 employees. Our company has four international advanced phenolic foam insulation board automatic production line, and equipped with relevant inspection and testing equipment, specializing in green, low carbon, energy saving, fireproof, environmental protection, heat preservation, light weight, high pressure, sound insulation, beautiful phenolic foam board and Production of composite materials. The company has a series of products: phenolic composite duct board series, phenolic external wall insulation board series, anti-corrosion silencer exhaust duct sheet. The company has an annual production capacity of 7 million square meters of phenolic composite air duct for central air conditioning, 500,000 cubic meters of phenolic external wall insulation board, and 3 million square meters of anti-corrosion silencer exhaust duct sheet. In 2015, 2016 and 2017, the country achieved the first national output for three consecutive years.
