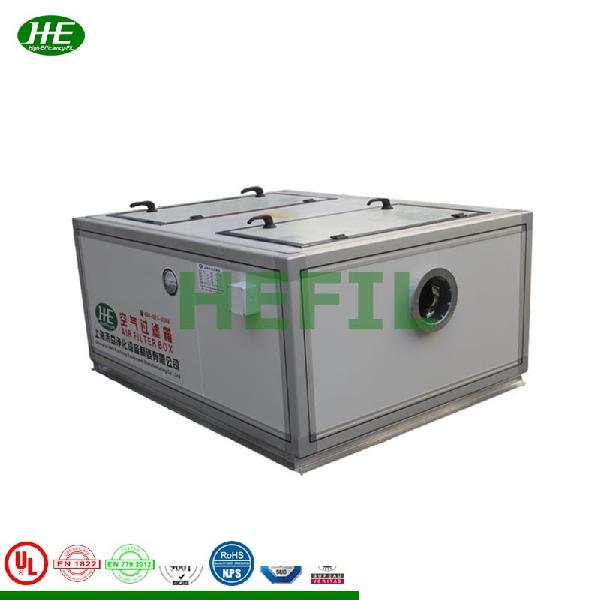

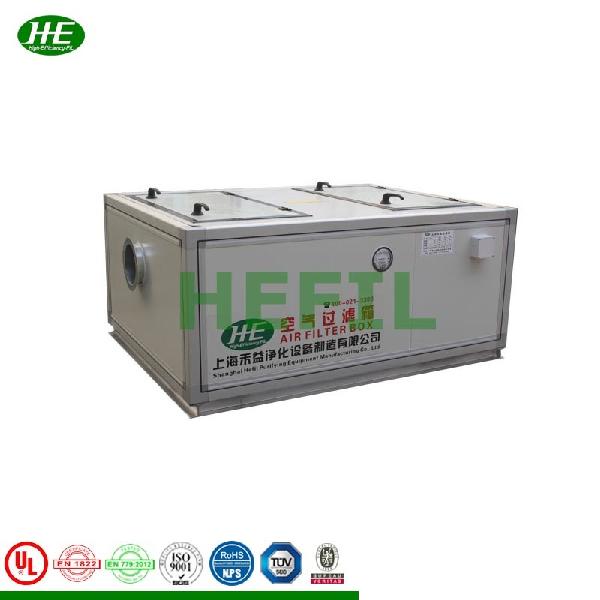

Dedusting Filter Box

Price:

US 2000-5000 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

1000 set per Year

Port:

Shanghai, China

Place of Origin:

China

Payment Terms:

L/C, T/T

Brand:

Hefil

Products Model:

BAXH

Products Details
Company Profile

Quick Details

Brand Name: Hefil

Model Number: BAXH

Place of Origin: China

Specifications

Application
It is widely applied to the machinery, household appliances, electronic industry, chemical industry and chemical fiber, textile industry, cigarette, printing, pharmaceutical, food, radio and TV, science and technology museum, hotel, exhibition hall and other industries and civil constructions.

Advantages
Dedusting filter box is a kind of environment protection equipment of air filtration and at the same time it is a drive force of fresh air.
Simple structure, convenient in manufacture, wide application, convenient in maintenance.
The supply and exhaust fan inside will ensure enough fresh air in the room to reach the air purification target.
It is mainly used to the air purifying stage of concentration ventilation and the central AC systems.

Technical Parameter

Filter box components: access door, fan, differential pressure gauge, frequency converter.
Box is made of spraying plastic of color plate, stainless steel plate or cold-rolled steel sheet.
Outlet size: standard for square outlet (size is not qualified) or can be customized as per customers' requests.
Air flow can be customized as required.
Filter box can be set into single-stage, double-stage and multi-stage purifying. Single stage is only one stage filter equipped; double or multi-stage purifying means that the front stage or back stage can be added the primary or middle-efficiency filter as per customer's request.
Special requirements: it can be added the function of infrared sterilization, removing smell and static as per customer's request.

Filters Mainly Configurable
As per customers' different requests, filter box is generally equipped with filters as below (please refer to products description for detailed information).
Size of the filters is mainly international common size: 24"×24" equal to 610×610mm. Filters are arranged according to a matrix form in the order of 2×2, 3×2, 3×3:
HMV: V-bank High Capacity Filter
HBM: Synthetic Pocket Filter
HBP: Non-Woven Pocket Filter
HPP: Primary Efficiency Panel Filter
HWM: All Metal Washable Filter

Common Specifications
