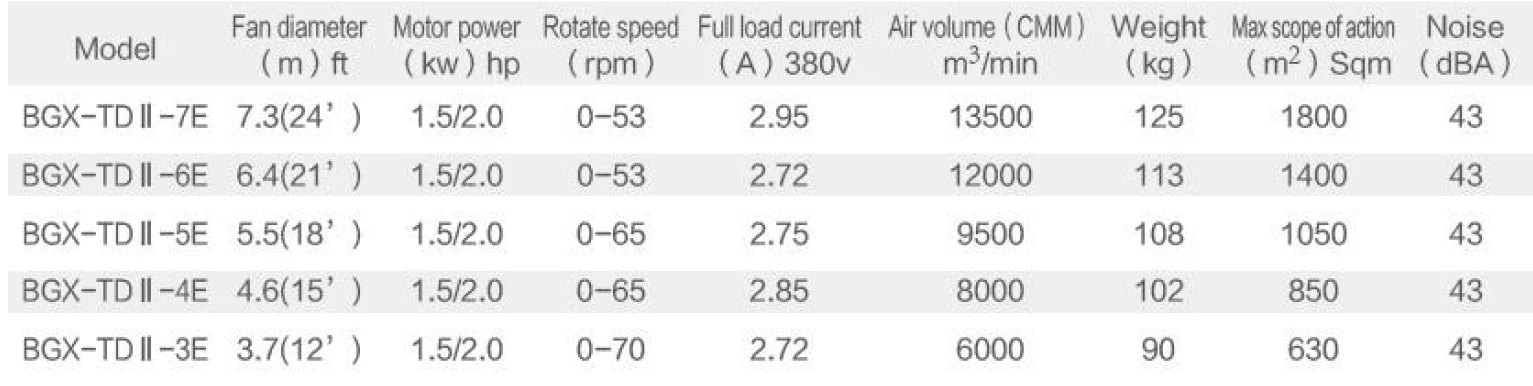

GX 24ft geared HVLS ceiling fan

        Hub

Import American Airlines AA7075 super hard alloy + Japanese precision high pressure forging technology (sigma B 600Mpa) +T6 heat treatment +CNC precision machining + dynamic balance check quality; Industrial HVLS fan hub is built by Japanese senior corporation, which focuses on precision forging of aluminum alloy for 60 years.

       Motor

Germany imported NORDL increase the seat number of coaxial helical gear reducer (output shaft diameter 40mm)
- The risk of reduce the risk of radial force, one of the security guarantees
-Reducing the risk of oil emulsification and ensuring safety.
Imported SKF-VL reinforced roller bearing
-Reduce the radial offset, long-life warranty;
The new generation of IE2 energy efficient motors with the latest national standards
-More energy saving

Controller system

Our big industrial fan used Denmark ‘Danfoss’ transducer, the built-in RF interference filter and the brake chopper have the function of restraining radio interference and braking;
It has the functions of earth fault, over and short circuit protection, and so on;
IP55 protection grade and NEMA1 standard control box;
The box is equipped with Schneider three gear switch and infinitely variable speed knob.

 Fan blade

The size of the industrial ceiling fan blade is amplified by 20% of all the current fan sizes, which will increase the air volume. It also proves that the weight of the whole machine is reduced and the efficiency of the motor is improved.
The fan blade adopts the internal steel cable, the stiffened reinforcement combination, the fan blade and the fixed point line and surface safety method. (at present, two bolts are used in the fixed way in China, and it is easier to aggravate the damage of the fan blade fatigue point).

Technical Help

We have a fully trained team waiting to provide you with help for product installation and maintenance.
From deciding on the correct choice of fan to the supplier choose, to after-sale service, just call us at any time.
For after sales support, our Service team is ready to answer any questions and offer solutions for already installed fan.

After-sale Service

Seller provides 24-hour hotline communication service, and responds to service within two working days. Failure solutions and damaged parts are provided within three working days. Seller will actively cooperate with buyer to provide technical support.

We have a dedicated team of experienced fan engineers that are on-call and ready to help with any technical queries that you may have.

To ensure the right operation of your process, Gaxiao support you all over the world for commissioning, balancing or repair of any kind of fan. We manage for you the spare parts with professionalism and suggest you aeraulics audits to optimize your ventilation process.

Warranty Policy

1)The whole fan(tradition fan and PMSM fan) is guaranteed for three years.
2) Fan blade and hub are guaranteed for ten years.
3)The commercial whole fan is guaranteed for two years.
3)We provide life-long maintenance.

Research & Development

Our team of engineers have paid large attention of fan researching& development. This intellect is further enhanced from their previous study and experience. Our clients are welcome to use this resource in the development of their product.

Under of our engineers effort, our fans have become:
(1)Permanent magnetic fan noise: 36dBA, but air volume 15000m³/min
(2)Commercial fan Power: 0.36kw, but air volume 8200m³/min
(3)The fan blade of industrial fan has amplified 20% which increase air volume, but the whole fan weight has been reduced.

Color Customization

You can customize the grey system, yellow blue combination and any other color scheme you want!

Jiangsu Gaxiao is located in suzhou, Jiangsu province, China. Since its inception, Gaxiao has always been committed to the development and research of large industrial fans. Adhere to the corporate purpose: down to earth, technology-oriented, focus on quality, brand name service!

Our company's main products are as follows: Traditional Industrial Fan, PMSM Fan, Commercial Fan, Explosion-Proof Fan and so on. On the basis of energy saving,low carbon and environmental protection, try our best to make the word cool and refreshing.
