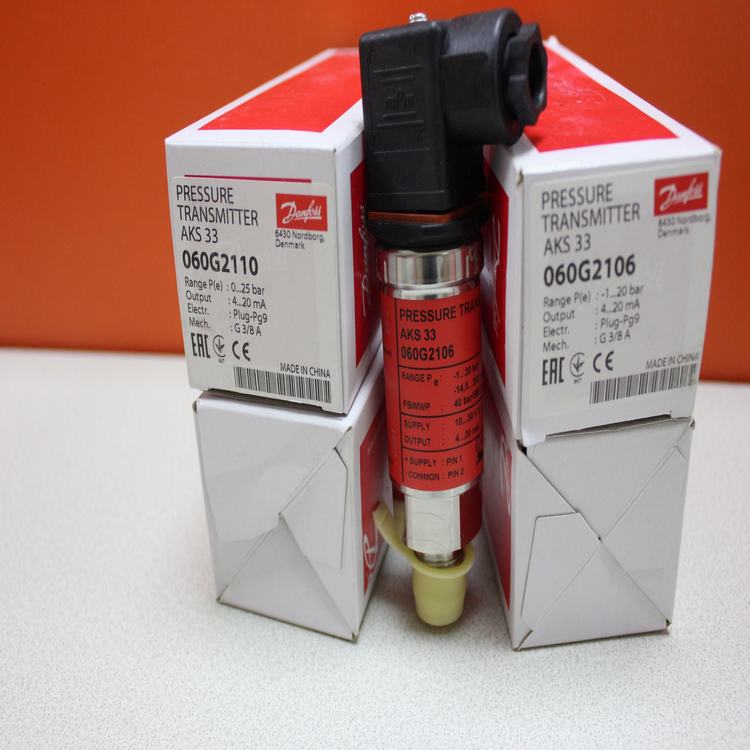

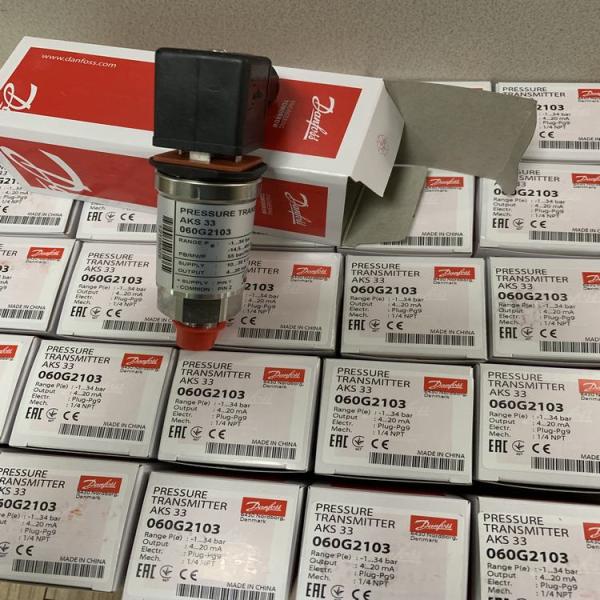

Danfoss AKS33-060G2105,060G2110 Pressure Sensor

Danfoss AKS33-060G2105,060G2110 Pressure Sensor Features

Highly developed sensor technology means high pressure regulation accuracy, a very important
factor in the precise and energy-economic capacity regulation of refrigeration plant.
• Temperature compensation for LP and HP
pressure transmitters, developed specially for
refrigeration plant.
LP: -30 – 40 °C (≤ 16 bar)
HP: 0 – 80 °C (> 16 bar)
• Compatibility with all refrigerants incl.
ammonia means less stock and greater
application flexibility.
• Built-in voltage stabiliser, i.e. the AKS pressure
transmitters can be powered from an
unregulated voltage supply of any output
within given limits.
• Effective protection against moisture means
that the sensor can be mounted in very harsh
environments, e.g. in the suction line
encapsulated in an ice block.
• Robust construction gives protection against
mechanical influences such as shock, vibration
and pressure surge. AKS sensors can be
mounted direct on to the plant.
• No adjustment necessary. With the highly
developed sensor technology and sealed
gauge principle, the accuracy ofthe factory
setting is maintained independent of variations
in ambient temperature and atmospheric
pressure. This is very important when ensuring
evaporating pressure control in air
conditioning and refrigeration applications.
• EMC protection according to EU
EMC-directive (CE-marked)
• UL approved
• Polarity protected inputs.
• For use in zone 2 explosive atmospheres

Danfoss AKS33-060G2105,060G2110 Pressure Sensor Technical Parameters

Performance
Accuracy (incl. non-linearity, hysteresis and repeatability) ± 0.3% FS (typ.) / ± 0.8% FS (max.)
Non-linearity BFSL (conformity) < ± 0.2% FS
Hysteresis and repeatability ≤ ± 0.1% FS
Thermal zero point shift
≤ ± 0.1% FS / 10K (typ.)
≤ ± 0.2% FS / 10K (max.)
Thermal sensitivity (span) shift
≤ ± 0.1% FS / 10K (typ.)
≤ ± 0.2% FS / 10K (max.)
Response time < 4 ms
Max. working pressure See ordering table
Burst pressure min. 300 bar
Electrical specifications AKS 33, 4 – 20 mA output signal
Rated output signal 4 – 20 mA
Supply voltage [U B ], polarity protected 10 – 30 V DC
Supply voltage dependency < 0.05% FS / 10 V
Current limitation (linear output signal up to 1.5 × rated range) 28 mA
Max.Load, [R L ] R L ≤  U
B  - 10 V
0.02A [Ω]

Operating range
[bar]
Max. working
pressure PB
[bar]
Compensated
temperature
range
[°C]
Code no.
EN 175301-803, plug Pg 9 Cable
1/4 NPT  1 ) G  3 / 8 A  2 ) 1/4 flare  3 ) 1/4 NPT  1 ) G  3 / 8 A  2 ) 1/4 flare  3 )
LP
-1 – 5 33 -30 – 40 060G2112 060G2108 060G2047 – – –
-1 – 6 33 -30 – 40 060G2100 060G2104 060G2048 – 060G2120
-1 – 9 33 -30 – 40 060G2113 060G2111 060G2044 – – 060G2062
-1 – 12 33 -30 – 40 060G2101 060G2105 060G2049 060G2117
0 – 16 40 -30 – 40 060G2114 060G2109 – – – –
HP
-1 – 34 55 0 – 80 060G2103 060G2107 060G2051 060G2119 060G2065
-1 – 20 40 0 – 80 060G2102 060G2106 060G2050 060G2118 – –
0 – 25 40 0 – 80 060G2115 060G2110 060G2045 – 060G2127 060G2067
