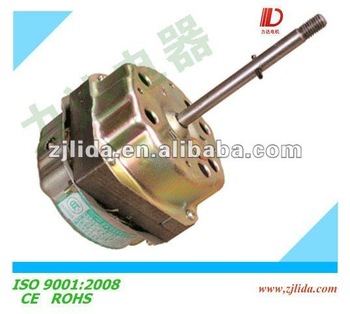

16" Ceiling Fan Motor
AC Fan Motor used for wall fan or the samll ceiling fans which fan blade is 14"/16"/18"/20".
Reasonable structural design , good running stability, strong starting performance, low noise.
Technical parameter:
Model |
Rated Voltage (V) |
Rated Frequency (Hz) |
Rated Power Output (W) |
Rated Current (A) |
Rated Speed of Rotation (r/mm) |
Capacity (uf/450v) |
Noise |
YSY-400 |
220/110 |
50/60 |
16 |
0.18/0.36 |
1150 |
1.2/4 |
42 |
YSY-350 |
220/110 |
50/60 |
16 |
0.18/0.36 |
1150 |
1.2/4 |
42 |
YSY-300 |
220/110 |
50/60 |
12 |
0.16/0.32 |
1200 |
1.0/3 |
42 |
YSY-250 |
220/110 |
50/60 |
8 |
0.14/0.28 |
1300 |
0.8/2.5 |
42 |
We also can meet customers' demands.
